Gasket Tools Manufacturer OEM Custom Solutions for Industrial Applications

Professional Gasket Tools for Flawless Sealing Performance

In industrial maintenance, pipeline systems, and engine assembly, achieving a perfect, reliable seal is non-negotiable. The right gasket tools are the cornerstone of this process, directly impacting installation accuracy, seal longevity, and system safety. At Kaxite Seals, we engineer precision tools designed to work in perfect harmony with our high-performance sealing products. Our comprehensive toolkit is developed for professionals who demand efficiency, repeatability, and uncompromising quality in every gasket installation and removal task.

Core Product Line & Technical Specifications

Our range of gasket tools is categorized by function, each built with specific materials and tolerances to handle demanding environments. Below is a detailed breakdown of our core offerings.

Gasket Cutting & Fabrication Tools

• Precision Hole Punch Kits: Manufactured from high-carbon chrome steel for exceptional durability. Sets include punch diameters from 1/16" (1.6mm) to 2" (50.8mm). Features a ball-bearing driven rotational mechanism for clean, burr-free cuts in materials up to 1/8" (3.2mm) thick.

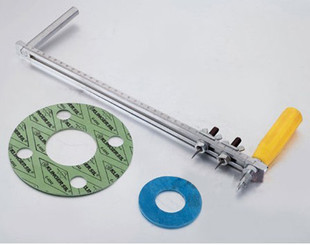

• Adjustable Circle Cutters: Tool body constructed from hardened aluminum alloy. Cutting radius is adjustable from 0.5" to 12" (12.7mm to 304.8mm) with a micrometer-style adjustment knob for accuracy within ±0.001" (0.025mm). Includes replaceable tungsten carbide blades.
• Beam-Type Compass Cutters: Ideal for large-diameter or on-site fabrication. Steel beam extends up to 48" (1219mm). Central pivot features a low-friction brass bushing. Cutter head accepts standard utility blades for cutting various gasket materials.

Surface Preparation & Sealing Tools

• Dual-Action Gasket Scrapers: Set includes 4 blades of different shapes (flat, hook, triangular, rounded) made of hardened tool steel. Ergonomic composite handle with non-slip grip. Blade angles are optimized to remove old gasket material without scoring underlying metal surfaces.
• Torque Wrench Calibrated for Gasket Installation: Click-type wrenches calibrated to ANSI B107.14-2018 standards. Ranges cover 5-150 ft-lb (6.8-203.5 Nm) and 10-250 ft-lb (13.6-339 Nm). Memory pointer indicates final torque value. 3/8" and 1/2" square drive models available.
• Sequential Bolting Kits: Color-coded tags and digital torque sequence guides for complex flanges (e.g., ANSI B16.5, DIN). Kits include T-handle torque limiters and a proprietary cross-pattern tightening scheduler to ensure even gasket compression.

Frequently Asked Questions (FAQ)

Q: Why is using a specialized torque wrench, like the Kaxite KX-TW250C, critical for gasket installation?

A: Proper bolt load is the single most important factor in creating a stable, leak-free seal. Under-torquing leads to insufficient gasket compression and leakage. Over-torquing can crush the gasket, damage flanges, or cause bolt failure. A calibrated torque wrench ensures the exact load specified by the gasket manufacturer (like Kaxite Seals) and flange standard is applied. Our wrenches are pre-calibrated to deliver the accuracy needed for our specific sealing products, accounting for their compression and stress-relaxation characteristics.

Q: Can I use your KX-AC125 Adjustable Cutter on all gasket sheet materials?

A: The KX-AC125 is designed for most soft to semi-rigid sheet materials, including compressed non-asbestos (CNAF), graphite, PTFE, and rubber-cork composites. For very hard materials like solid metal gasket sheets (e.g., stainless steel, Monel), we recommend using our hole punch kits or shearing tools. Always consult our material compatibility guide, as using the wrong tool can accelerate blade wear or result in a ragged cut edge that compromises the seal.

Q: What is the advantage of your sequential bolting kits over a standard crisscross pattern?

A: While a basic crisscross pattern is good, our sequential kits add precision and documentation. They are pre-configured for specific flange sizes and pressure classes, providing a numbered, color-coded sequence that minimizes human error. This is crucial for large-diameter flanges or critical service applications. The process ensures the gasket is compressed evenly from the center out, preventing distortion or pinching. It creates a more uniform seating stress across the entire Kaxite gasket face, maximizing its service life and performance.

Q: How do I maintain Kaxite gasket tools to ensure their longevity and accuracy?

A: Regular maintenance is simple but vital. After each use, clean all tools with a solvent to remove grease, gasket debris, and moisture. Lightly coat steel parts (punches, cutter shafts, scraper blades) with a thin layer of corrosion-inhibiting oil. Store tools in a dry environment. For torque wrenches, always store them at their lowest setting to relieve spring tension and have them recalibrated annually or after every 5,000 cycles, whichever comes first, to maintain their specified ±3% accuracy.

Q: Are Kaxite Seals gasket tools compatible with gaskets from other manufacturers?

A: Yes, our tools are built to industry-standard dimensions and tolerances, making them suitable for working with gaskets from most manufacturers. However, they are engineered and optimized based on the physical properties—such as density, compressibility, and shear strength—of Kaxite Seals' own products. For optimal results, especially when following our detailed installation procedures and achieving the rated performance of a Kaxite gasket, we strongly recommend using the complementary toolset designed for it.

Selecting the Right Tool for Your Application

Choosing the correct gasket tool extends beyond the immediate task. Consider the operating environment: for chemical plants, tools with corrosion-resistant finishes are paramount. In high-vibration environments like powertrain assembly, tools with positive-locking mechanisms prevent loosening. Always match the tool's capacity (like a cutter's thickness rating or a punch's diameter) to your most common gasket specifications. Investing in the Kaxite Seals professional tool system not only streamlines workflows but also acts as a form of quality control, reducing installation errors and costly rework or downtime due to seal failure.
