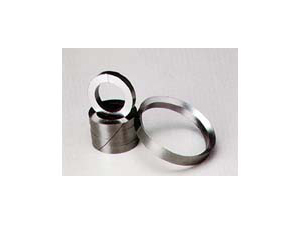

What is a Die-formed Graphite Ring and Why is it a Superior Sealing Solution?
In demanding industrial environments where reliability is non-negotiable, the die-formed graphite ring stands as a pinnacle of sealing technology. Unlike traditional packing or braided seals, a die-formed graphite ring is manufactured through a precision stamping and forming process. This process compresses high-purity flexible graphite foil into a precise, consistent ring shape with defined dimensions and density. The result is a seal with exceptional performance characteristics: self-lubricating, chemically inert across a wide pH range, and capable of withstanding extreme temperatures from cryogenic levels up to 3000°F (1650°C) in non-oxidizing atmospheres. At Kaxite Seals, we have refined this die-forming process to produce rings that offer unmatched reliability for flanges, valves, pumps, and reactors in industries such as chemical processing, power generation, oil & gas, and pharmaceuticals.
Key Advantages of Kaxite Seals Die-formed Graphite Rings
Choosing a die-formed ring from Kaxite Seals provides several distinct benefits over alternative sealing methods:
- Exceptional Thermal Stability: Maintains sealing integrity under rapid thermal cycling and extreme temperatures, preventing leaks during startups and shutdowns.
- Superior Chemical Resistance: Impervious to most acids, alkalis, and organic solvents, ensuring long service life in corrosive applications.
- Low Creep Relaxation: The die-formed process creates a homogeneous structure that resists the gradual loss of bolt load, maintaining a tight seal over extended periods.
- Excellent Conformability: Compresses easily to fill minor imperfections in flange faces, creating an effective barrier even on less-than-ideal surfaces.
- High Purity: Kaxite Seals utilizes graphite foils with very low chloride and sulfur content, making our rings ideal for applications susceptible to stress corrosion cracking (SCC).
- No Asbestos or Ceramic Fibers: A safe, environmentally friendly sealing solution that meets modern health and safety standards.
Technical Specifications and Product Parameters
Kaxite Seals offers a comprehensive range of die-formed graphite rings to meet various pressure classes, flange types, and service conditions. Our standard materials and dimensions are detailed below.
Standard Material Grades
| Grade Code | Graphite Purity | Max Temperature (Inert/Non-Oxidizing) | <>Max Temperature (Oxidizing)pH Range | Typical Applications | |
|---|---|---|---|---|---|
| KX-DFG-HP | >99.9% Carbon | 3000°F / 1650°C | 900°F / 480°C | 0-14 | High-purity chemical, semiconductor, and food processing |
| KX-DFG-STD | >99% Carbon | 3000°F / 1650°C | 850°F / 455°C | 0-14 | General industrial, heat exchangers, valve stems |
| KX-DFG-FG | >98.5% Carbon | 3000°F / 1650°C | 800°F / 425°C | 0-14 | Flange gaskets for oil & gas, power plant fittings |
| KX-DFG-CF | >99% Carbon with Corrosion Inhibitor | 2800°F / 1540°C | 750°F / 400°C | 0-14 | Aggressive acidic or alkaline environments |
Standard Size Range & Pressure Ratings
| Inner Diameter (ID) Range | Outer Diameter (OD) Range | Cross-Section (Width) Options | Standard Density | Max Pressure Rating (at 70°F/21°C) | Applicable Standards |
|---|---|---|---|---|---|
| 0.25" (6mm) to 120" (3048mm) | 1.0" (25mm) to 125" (3175mm) | 1/16", 1/8", 1/4", 3/8", 1/2" | 100-120 lbs/ft³ (1.6-1.9 g/cm³) | Up to 3000 psi (207 bar) | ASME B16.20, B16.21, DIN 2690-2691 |
Frequently Asked Questions (FAQ) About Die-formed Graphite Rings
Q: What is the primary difference between a die-formed graphite ring and a spiral-wound gasket with a graphite filler?
A: The core difference lies in construction and performance. A die-formed graphite ring is a homogeneous, solid ring of compressed graphite, offering uniform density and superior sealing across its entire surface. It provides excellent creep resistance and is ideal for flat-face and raised-face flanges. A spiral-wound gasket is a composite of alternating metal windings and graphite filler. While excellent for high-pressure applications, it can be more susceptible to installation errors and has a different compression profile. The die-formed ring from Kaxite Seals is often preferred for its simplicity, reliability, and excellent chemical resistance in a wide range of standard flange connections.
Q: Can Kaxite Seals die-formed graphite rings be used for fire-safe applications?
A: Yes, absolutely. Flexible graphite itself is inherently fire-safe. When tested according to standards like API 607, API 6FB, or ISO 10497, a properly installed die-formed graphite ring will maintain a seal even during a fire. The graphite does not melt or burn away; instead, it expands slightly, helping to fill gaps created by thermal distortion of the flange. Kaxite Seals can provide specific fire-test certifications for our die-formed rings upon request, making them suitable for critical safety-related service.
Q: How do I select the correct density for my application?
A: Density is a critical factor influencing sealing force, recovery, and creep resistance. For most standard flange applications (ASME Class 150 to 600), our standard density of 100-120 lbs/ft³ is recommended. For higher pressure classes (Class 900 to 2500) or applications with high thermal cycling, a higher density ring (up to 130 lbs/ft³) may be specified to reduce creep relaxation. Conversely, for delicate or low-load flange connections, a slightly lower density ring can provide adequate sealing without requiring excessive bolt torque. Our technical team at Kaxite Seals can advise on the optimal density based on your specific pressure, temperature, and flange type.
Q: Are there any media or services where a die-formed graphite ring is not recommended?
A: While die-formed graphite rings from Kaxite Seals are exceptionally versatile, caution is advised in a few specific scenarios. They are not recommended for prolonged use with strong oxidizing agents at high temperatures (e.g., concentrated nitric acid, hydrogen peroxide above certain concentrations) as these can gradually oxidize the graphite. For applications with highly radioactive or ultrapure water systems where leaching is a concern, our special high-purity KX-DFG-HP grade with leaching certifications should be used. Additionally, for applications with extreme erosion/cavitation or in rotating equipment as a dynamic seal, alternative materials or designs might be more suitable.
Q: What is the proper installation procedure for a die-formed graphite ring?
A: Correct installation is key to achieving a leak-free seal. First, ensure the flange faces are clean, dry, and free of old gasket material and scratches. The die-formed ring should be handled with care to avoid bending or cracking. Place the ring centered on the flange. It is typically installed dry, without any adhesive or sealant. Use a crisscross bolt tightening pattern in multiple stages (e.g., 30%, 60%, 100% of the final torque) to achieve even compression. Always refer to the flange manufacturer's recommended bolt torque values for the specific pressure class and bolt size. Over-torquing can crush the ring and cause failure, while under-torquing will not activate the seal.
Q: Does Kaxite Seals offer custom shapes or sizes beyond the standard range?
A: Yes, custom engineering is a core strength of Kaxite Seals. We can manufacture die-formed graphite rings in virtually any diameter, cross-section, and with special features such as:
- Inner or outer metal centering rings for precise alignment.
- Custom profiles (e.g., oval, square, octagonal) for heat exchangers or vessel openings.
- Laminated constructions with inserted metal foils for added strength.
- Specialty coatings or treatments for unique chemical resistance.
Industries and Applications Served by Kaxite Seals
The versatility of our die-formed graphite rings makes them indispensable across a broad industrial spectrum. Key sectors include:
- Chemical & Petrochemical: Reactor flanges, column manways, heat exchanger channels, pump seal glands. Resists acids, alkalis, hydrocarbons, and solvents.
- Oil & Gas (Upstream, Midstream, Downstream): Wellhead equipment, pipeline flanges, compressor stations, refinery heat exchangers. Meets API and NACE standards.
- Power Generation: Boiler manways, turbine flanges, HRSG connections, steam system valves. Performs reliably in high-temperature steam service.
- Pharmaceutical & Food Processing: Vessel flanges, mixer shafts, sterilizer doors. Our high-purity (HP) grade is suitable for clean and sanitary service.
- Pulp & Paper: Digester covers, bleaching equipment, chemical recovery boiler flanges. Withstands corrosive pulping chemicals.
- Industrial Manufacturing: Furnace flanges, quench systems, autoclaves, and any high-temperature process equipment.
