Your Comprehensive Guide to Professional Packing Tools

In the demanding worlds of manufacturing, industrial maintenance, and fluid system management, the integrity of pumps, valves, and rotating equipment is paramount. Preventing leaks, ensuring operational efficiency, and maximizing the lifespan of critical machinery hinge on one essential component: proper sealing. This is where professional-grade Packing Tools become indispensable. At Kaxite Seals, we understand that the quality of the seal is only as good as the precision and reliability of the tools used to install and maintain it. This guide delves into the technical specifications, applications, and selection criteria for a complete packing toolkit, designed for engineers, maintenance supervisors, and procurement specialists.

Core Components of a Professional Packing Tool Kit

A comprehensive packing tool set is engineered to handle every step of the packing ring installation and removal process safely and accurately. Using improper tools can damage the packing rings, the gland follower, or the pump shaft itself, leading to premature failure and costly downtime. Below is a detailed breakdown of the essential tools, their functions, and key parameters.

Essential Tools & Their Functions

Packing Pullers/Hooks: Designed for the safe extraction of old, worn, or hardened packing rings from a stuffing box without scoring or damaging the shaft or box walls.
Packing Rings: Pre-formed rings of sealing material (e.g., graphite, PTFE, aramid) that are installed into the stuffing box to create the seal.
Packing Sizers & Sizing Mandrels: Used to precisely size the inner diameter of a packing ring before installation, ensuring a perfect fit on the shaft or spindle.
Split Die Sizers: Tools for adjusting the outer diameter of packing rings to match the stuffing box bore accurately.
Gland Packers/Tampers: Used to properly seat and tamp individual packing rings into the stuffing box, ensuring even compression and alignment.
Feelers/Thickness Gauges: Precision instruments for measuring clearances, such as the gap between the gland follower and the stuffing box.
Wrenches (Hex, Socket, Adjustable): For tightening gland nuts and bolts to the manufacturer's specified torque for correct compression.

Detailed Technical Parameters Table

Selecting the right tools requires attention to material specifications and dimensional compatibility. The following table outlines standard parameters for a professional-grade tool kit from Kaxite Seals.

Tool Name	Primary Material	Typical Size Range	Key Feature	Application
Double-ended Packing Hook/Puller	Heat-Treated Chrome Vanadium Steel	Hook Length: 150mm - 300mm	Polished, non-sparking tips; Ergonomic handle	Safe removal of braided, graphite, or PTFE packing.
Packing Sizing Mandrel Set	Precision-ground Hardened Steel	Shaft Diameter: 10mm - 100mm (in increments)	Mirror-finish surface to prevent material drag.	Sizing ID of rings for shafts, valves, pumps.
Adjustable Split Die Sizer	Carbon Steel with Anti-Corrosion Coating	Adjustable OD: 25mm - 150mm	Micrometer-style adjustment knob for precision.	Calibrating the outer diameter of packing rings.
Brass Gland Packer & Tamper Set	Non-sparking Brass	Various tip widths: 5mm, 8mm, 12mm	Soft metal prevents damage to gland or rings.	Seating rings in hazardous or sensitive environments.
Go-No-Go Feeler Gauge Set	Stainless Steel Strips	Thickness: 0.05mm - 1.0mm	Precision-lapped blades for accurate measurement.	Checking gland follower clearance (critical for heat dissipation).

Kaxite Seals Packing Tools: Engineered for Performance

Kaxite Seals manufactures its line of packing tools to exacting standards. Our tools are not mere accessories; they are integral to achieving the full performance potential of our sealing products. We focus on:

Material Integrity: Using high-grade steels, non-sparking alloys, and corrosion-resistant coatings to ensure durability and safety in all operational environments, including oil & gas and chemical processing.
Ergonomic Design: Tools are balanced and feature non-slip grips to reduce user fatigue during repetitive tasks, enhancing safety and installation consistency.
Precision Manufacturing: Each sizing tool is machined to tight tolerances (±0.01mm) to guarantee that packing rings are fitted perfectly, eliminating guesswork and ensuring optimal seal compression.
Comprehensive Kits: We offer purpose-built kits for specific industries (e.g., General Maintenance, Water Treatment, Power Generation) that contain all necessary tools in a durable, portable case.

Frequently Asked Questions (FAQ) on Packing Tools

Q: Why can't I use screwdrivers, picks, or other makeshift tools to remove packing?

A: Using improvised tools is a leading cause of shaft scoring. Even a minor scratch on a shaft or spindle can create a path for leakage and drastically reduce the life of the new packing. Professional packing hooks from Kaxite Seals are designed with the correct hardness, curvature, and tip geometry to engage the packing material without digging into the metal surfaces, protecting your valuable equipment.

Q: How critical is it to use a sizing mandrel for the packing ring's inner diameter?

A: It is absolutely critical. A packing ring forced onto a shaft without being properly sized will have an uneven inner diameter. This causes excessive friction and heat generation on the high spots, leading to rapid wear, shaft damage, and packing failure. Sizing on a mandrel ensures a uniform, concentric fit that promotes even wear, proper heat transfer, and long seal life.

Q: What is the purpose of a "go-no-go" feeler gauge when installing packing?

A: After installing the packing and tightening the gland nut, a specific clearance must remain between the gland follower and the stuffing box. This clearance allows for future tightening as the packing wears. The feeler gauge is used to measure this gap. A "go" blade of the specified thickness (e.g., 0.15mm) should fit, while a "no-go" blade (e.g., 0.20mm) should not. This ensures the packing is neither over-compressed (causing burnout) nor under-compressed (causing leakage).

Q: Are brass packing tools necessary, or can I use steel?

A: Brass tools are essential in environments where sparks pose an explosion risk (e.g., around flammable vapors or dust). Brass, a non-ferrous alloy, is non-sparking. They are also softer than steel, making them less likely to mar or damage softer shaft materials like stainless steel. For general-purpose use on robust equipment, hardened steel tools from Kaxite Seals offer superior strength and longevity.

Q: How do I choose the right packing tool kit for my facility?

A: Selection depends on three primary factors: 1) Equipment Portfolio: Determine the range of shaft sizes and stuffing box dimensions of your pumps and valves. 2) Packing Materials Used: Graphite, PTFE, and aramid require slightly different handling; ensure your kit has appropriate pullers and tampers. 3) Operational Environment: Consider safety requirements (non-sparking), frequency of repacking, and the need for portability. Kaxite Seals offers consultation to help you select or configure the ideal kit for your operational needs.

Q: Can improper use of packing tools void equipment warranties?

A: Yes, it potentially can. Many original equipment manufacturers (OEMs) specify that maintenance must be performed using proper tools and procedures. Damage to a shaft or stuffing box caused by incorrect tool use can be deemed "improper maintenance," which may not be covered under warranty. Using professional-grade tools like those from Kaxite Seals demonstrates adherence to best practices and helps protect your warranty coverage.

Advanced Applications & Best Practices

Beyond basic installation, mastering packing tools involves understanding their role in advanced scenarios. For high-speed rotary equipment, the concentricity achieved by precise sizing is non-negotiable. In abrasive slurry services, the clean removal of old packing without leaving residue is crucial. Kaxite Seals tools are designed for these challenges. Best practices include always cleaning the stuffing box thoroughly after removal, inspecting the shaft for wear, lubricating rings as specified by the packing manufacturer (if required), and using a criss-cross pattern when tightening gland bolts to apply even pressure. Documenting the clearance measured with your feeler gauge after installation provides a valuable baseline for future maintenance.

View as

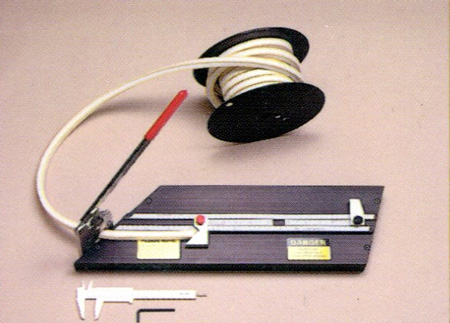

Guillotine Packing Ring Cutter

Kaxite Seals introduces the Guillotine Packing Ring Cutter, a premium tool designed for precise, effortless cutting of packing rings. With its durable stainless steel blade and ergonomic handle, it ensures clean cuts and enhanced user safety, ideal for industrial professionals and DIY enthusiasts. Experience unmatched efficiency and reliability, solving time-consuming tasks with ease. Its unique guillotine action sets it apart from conventional cutters, delivering superior performance. Upgrade your toolkit today and enjoy seamless operations with Kaxite Seals' commitment to quality.

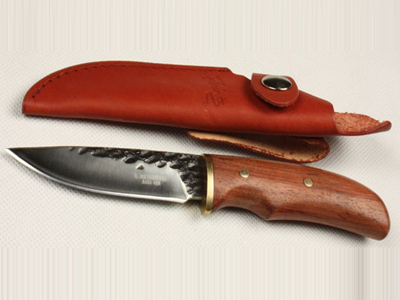

Packing Cutting Knife

Kaxite Seals' Packing Cutting Knife: a lightweight, durable tool for effortlessly opening packages. Its ergonomic design and sharp stainless steel blade ensure precision and safety, ideal for busy homes or offices. Experience the satisfaction of quick, clean cuts, eliminating frustration and saving time. What sets it apart? Built to last with superior grip and smooth operation. Get yours today and simplify your unpacking!

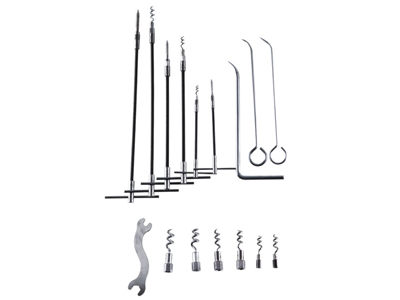

Packing Tool Set

Discover the Kaxite Seals Packing Tool Set, a professional-grade toolkit designed for efficient moving and organization. Crafted from durable materials with ergonomic handles, it simplifies packing tasks for homeowners, travelers, and gift-givers. Experience confidence and ease as it reduces stress and saves time, while its compact design outshines competitors. Elevate your packing game today!
