The Complete Guide to Industrial Gaskets: Selection, Performance, and Kaxite Seals Solutions

In the intricate world of industrial machinery and piping systems, the humble gasket plays a role of monumental importance. As a critical sealing component, a gasket is tasked with creating a static seal between two or more mating surfaces, preventing the leakage of fluids or gases under varying conditions of temperature, pressure, and chemical exposure. The failure of a single, seemingly insignificant gasket can lead to costly downtime, significant product loss, safety hazards, and environmental incidents. For over two decades, Kaxite Seals has been at the forefront of gasket technology, engineering precision sealing solutions that meet the rigorous demands of modern industry. This comprehensive guide delves into the essential parameters for selecting the right gasket and showcases the advanced materials and designs that define the Kaxite Seals product line.

Critical Parameters for Gasket Selection

Choosing the correct gasket is not a matter of guesswork; it is a precise engineering decision based on a well-defined set of application parameters. Ignoring any of these factors can compromise seal integrity. The primary considerations include:

• Media Type: The specific fluid or gas being sealed (e.g., steam, oil, acids, solvents, potable water).
• Temperature Range: Both the continuous operating temperature and any potential thermal cycling or peak temperatures.
• Pressure Range: The system's internal pressure, including static pressure and any pressure surges or vacuum conditions.
• Flange Characteristics: The flange material (carbon steel, stainless steel, etc.), surface finish, flatness, and bolt load capacity.
• Application Standards: Compliance requirements with industry standards such as ASTM, API, DIN, or specific FDA/USDA regulations for food and pharmaceutical applications.

Kaxite Seals Gasket Material Portfolio & Specifications

Kaxite Seals offers a diverse portfolio of gasket materials, each engineered to excel in specific operational environments. Our materials are rigorously tested to ensure consistent performance and reliability.

High-Performance Non-Asbestos Sheet Materials

Metal and Semi-Metallic Gaskets

Gaskets: Frequently Asked Questions (FAQ)

Q: What is the single most important factor in gasket failure?

A: Improper installation and bolt tightening procedures are leading causes of gasket failure. Even the best gasket will leak if not installed correctly. This includes using an incorrect bolt tightening sequence (criss-cross pattern), insufficient bolt load, or over-torquing which can crush the gasket. Always follow the flange manufacturer's or Kaxite Seals' recommended installation guidelines.

Q: Can I reuse a gasket after disassembling a flange connection?

A: It is almost never recommended to reuse a gasket. Once compressed during installation, a gasket undergoes permanent deformation and "sets" to the specific flange surface imperfections. Reusing it will not provide the same seal integrity, as it has lost its resilience and may have incurred damage during removal. For critical services, always install a new gasket.

Q: What is the difference between a "full-face" and "inside-bolt-circle" (IBC) gasket?

A: A full-face gasket covers the entire flange face, including the bolt holes. It is typically used with flat-faced (FF) flanges. An inside-bolt-circle gasket sits inside the ring of bolts and is used with raised-face (RF) or ring-type joint (RTJ) flanges. Selecting the wrong style will prevent proper flange alignment and sealing.

Q: How do I choose between a soft cut gasket and a spiral wound gasket?

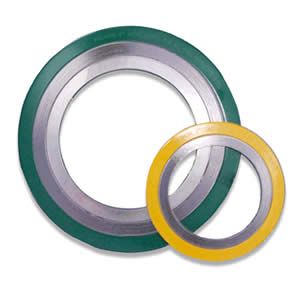

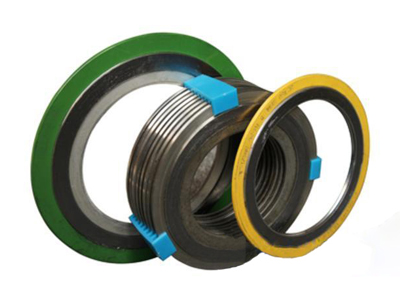

A: Soft cut gaskets (made from sheet materials like KX-NAF 1500 or PTFE) are cost-effective and excellent for low to medium pressure/temperature applications with flat-faced or raised-face flanges. Spiral wound gaskets, with their metal windings and filler, are designed for higher pressure/temperature cycling applications, especially on raised-face flanges in demanding industries like oil & gas. They offer superior resilience and recovery under variable loads.

Q: What certifications do Kaxite Seals gaskets carry for regulated industries?

A: Kaxite Seals maintains rigorous quality standards. Our relevant certifications include:

• ISO 9001:2015: For our quality management system.
• FDA 21 CFR & EU 10/2011 Compliant Materials: For gaskets used in food, beverage, and pharmaceutical contact.
• ASTM F104 / F868 Material Testing: For non-metallic gasket material classification.
• NACE MR0175/ISO 15156: For materials suitable for sour service (H2S environments) in oil and gas.

Q: My application involves rapid thermal cycling. What gasket material is best?

A: Applications with frequent and severe temperature changes require a gasket with excellent thermal stability and recovery. Flexible graphite gaskets (like our KX-FG 2000 series) or spiral wound gaskets with flexible graphite filler are top choices. They maintain seal integrity as the flange expands and contracts, whereas some elastomer-based materials can harden or lose elasticity.

Advanced Gasket Designs from Kaxite Seals

Beyond standard sheet and spiral wound gaskets, Kaxite Seals provides engineered solutions for unique challenges:

• KX-CAM Profile Gaskets: Computer-Aided Manufacturing allows for the precise production of complex, non-standard gasket profiles from virtually any sheet material, eliminating the cost and lead time of traditional tooling.
• Electrically Conductive Gaskets: For applications requiring static dissipation or EMI/RFI shielding, we offer gaskets incorporating conductive fibers or metals.
• PTFE Envelope Gaskets: A cost-effective solution where a corrosive chemical service requires a PTFE lining. A fabric-reinforced elastomer core provides body, while a thin PTFE envelope provides chemical resistance.
• Custom Laminated Structures: We laminate different materials to create a composite gasket with multiple properties (e.g., a chemical-resistant layer bonded to a compressible, sealing layer).

Proper Gasket Storage and Handling

To preserve gasket performance and shelf life, proper handling is crucial. Kaxite Seals recommends:

• Store gaskets in their original packaging in a cool, dry, dark environment away from direct sunlight, ozone sources, and excessive heat.
• Store spiral wound and metal gaskets in a dry area to prevent corrosion. Silica gel desiccant packs in storage containers are advised for humid climates.
• Do not hang gaskets on hooks or bend them, as this can cause permanent deformation or kinking.
• Handle PTFE and soft graphite gaskets with care to avoid cuts, tears, or the inclusion of foreign particles.
• Always inspect the gasket visually for any damage, imperfections, or expiration dates (for certain rubber compounds) prior to installation.
