Corrugated Gaskets: The Engineered Solution for Demanding Sealing Applications

In the complex world of industrial sealing, where pressure, temperature, and media compatibility are constant challenges, standard flat gaskets often fall short. This is where the engineered superiority of Corrugated gaskets comes into play. At Kaxite Seals, we specialize in manufacturing high-performance corrugated metal gaskets designed to deliver unparalleled reliability in the most severe operating conditions. Unlike conventional gaskets, our corrugated designs combine the flexibility to seat effectively on imperfect flanges with the structural strength to withstand extreme pressures and thermal cycling, making them the preferred choice for critical applications across oil & gas, chemical processing, power generation, and aerospace industries.

The fundamental advantage of a Kaxite Seals corrugated gasket lies in its unique geometry. The carefully engineered wave pattern creates a series of concentric sealing lines. This multi-line sealing effect drastically reduces the required bolt load to achieve a leak-tight seal compared to solid flat metal gaskets. The corrugations act as springs, allowing the gasket to flex and compensate for flange rotation, distortion, and thermal expansion/contraction during service. This resilience translates directly into long-term sealing integrity, reduced maintenance downtime, and enhanced operational safety.

Key Product Parameters & Specifications

Selecting the correct corrugated gasket requires a detailed understanding of its parameters. At Kaxite Seals, we engineer each gasket with precise specifications to match your specific application needs. Below are the critical parameters that define our product's performance.

Primary Material Constructions

We offer a wide range of material combinations to tackle various media and environmental challenges. The core metal layer provides structural strength, while the filler material ensures surface sealing.

Metal Core Options:
- Stainless Steel (304, 304L, 316, 316L, 321, 347)
- Carbon Steel
- Monel
- Inconel 600, 625
- Hastelloy B2, C276
- Titanium
- Copper
- Aluminum
Filler Material Options:
- Expanded Graphite (Flexible Graphite) - Excellent chemical resistance and high-temperature stability.
- PTFE (Teflon) - Superior chemical inertness for aggressive media.
- Ceramic Fiber (e.g., Kaowool) - For extremely high-temperature applications.
- Mica - Used in high-temperature, high-pressure steam services.
- Non-Asbestos Organic (NAO) Fibers - A general-purpose, cost-effective option.

Technical Specifications & Performance Data

The following table outlines the standard performance ranges for Kaxite Seals corrugated gaskets. Custom designs can extend these limits.

Parameter	Standard Range	Notes
Temperature Range	-240°C to +1000°C (-400°F to +1832°F)	Dependent on metal and filler combination. Graphite fillers typically range -240°C to 550°C in oxidizing atmospheres, higher in inert gas.
Pressure Rating	Up to 3000 psi (210 bar)	Designed for full pressure containment within the rating of the mating flanges.
Corrugation Pitch & Height	Customizable: Pitch 1.5mm - 6mm, Height 0.5mm - 2mm	Finer pitch/height offers more sealing lines and flexibility. Coarser patterns provide higher spring force.
Standard Thickness	1.5 mm, 2.0 mm, 3.0 mm (0.062", 0.078", 0.125")	Available in other thicknesses upon request. Thickness affects sealing force and recovery.
Standard Dimensions	Inner Diameter: 15mm to 3000mm+ Outer Diameter: As per ASME B16.20, B16.21, DIN, EN, JIS, or customer drawing.	Full compliance with international flange standards. We can manufacture to any bespoke size.
Surface Finishes	Plain, Tin Plated, Silver Plated, Nickel Plated, E-Coating	Plating enhances corrosion resistance, prevents filler adhesion, and eases installation/removal.

Design Variants from Kaxite Seals

Beyond the standard corrugated metal gasket with filler, we offer specialized designs to address unique application requirements.

Corrugated Gasket with Inner/Outer Guide Rings: Features a solid metal ring (usually carbon steel) on the ID and/or OD. The guide ring centers the gasket during installation, prevents over-compression of the corrugated core, and protects the soft filler from blow-out or erosion in high-velocity fluid services.
Corrugated Gasket with Tanged/Metal Armor: The filler material (like graphite) is fully encapsulated in a perforated or "tanged" metal jacket. This design is ideal for handling highly aggressive chemicals or for applications where the filler material must be completely contained to prevent contamination.
Kammprofile Gaskets (Kammprofile with Soft Facing): A hybrid design featuring a solid metal core with concentric machined grooves (serrations) on both faces, which are then covered with a soft facing material like expanded graphite or PTFE. This combines the high structural strength and blowout resistance of a solid metal gasket with the excellent sealing performance of a soft material.
Double Corrugated Gaskets: Feature two layers of corrugated metal, often with a filler in between or on the outer layers. This design offers exceptionally high resilience and recovery, making it perfect for applications with severe thermal cycling or frequent pressure fluctuations.

Frequently Asked Questions (FAQ) About Corrugated Gaskets

Q: What are the main advantages of choosing a corrugated gasket over a standard flat gasket?

A: Corrugated gaskets offer several key advantages: Lower Seating Stress: They require significantly less bolt load to achieve a seal due to multiple sealing lines. Excellent Resilience: The corrugated structure acts like a spring, allowing it to absorb flange movement from thermal cycling and vibration without losing seal integrity. Conformability: They can seat effectively on slightly scratched, warped, or imperfect flange surfaces better than solid flat gaskets. Wide Application Range: Available in countless metal/filler combinations, they can handle extreme temperatures, pressures, and corrosive media.

Q: How do I select the right metal and filler material for my application?

A: Material selection is critical. Follow this guide: 1) Identify the Media: Know the chemical composition, pH, and any particulates. 2) Determine Operating Conditions: Record the continuous and peak temperatures and pressures. 3) Choose the Metal: The metal core must resist corrosion from the media and withstand the temperature. For example, use 316SS for general chemical service, Monel for hydrofluoric acid, or Inconel for high-temperature oxidizing environments. 4) Choose the Filler: Expanded graphite is excellent for high temperatures and a wide pH range but is not suitable for strong oxidizers. PTFE is chemically inert but has lower temperature limits. Consult the Kaxite Seals engineering team for specific recommendations based on your service data.

Q: Can Kaxite Seals corrugated gaskets be used in heat exchangers?

A: Absolutely. Corrugated gaskets are exceptionally well-suited for shell-and-tube and plate heat exchangers. Their resilience is perfect for handling the differential thermal expansion between the tubesheets, shell, and tubes. For heat exchangers, we often recommend a thin (1.5mm) corrugated gasket with expanded graphite filler, which provides an excellent seal with minimal bolt load. For floating head or U-tube exchangers where significant movement occurs, our double corrugated designs offer superior performance and longer service life.

Q: What is the recommended installation torque for corrugated gaskets?

A: There is no universal torque value, as it depends on the gasket's size, thickness, material, corrugation density, the flange material (steel vs. cast iron), bolt grade, and the use of lubrication. Using a standard torque value can lead to under- or over-tightening, causing leaks or gasket damage. Kaxite Seals provides specific Target Seating Stress (y-axis) recommendations for each gasket type, usually expressed in MPa or psi. A qualified installer should then calculate the corresponding bolt torque using the flange bolt pattern, bolt size, and coefficient of friction. We strongly recommend following ASME PCC-1 guidelines for bolted joint assembly and using a calibrated torque wrench or hydraulic tensioning system in a cross-pattern sequence.

Q: How do corrugated gaskets from Kaxite Seals perform under thermal cycling?

A: Superior performance under thermal cycling is one of the hallmark features of our corrugated gaskets. As the system heats up and cools down, flanges expand and contract at different rates, which can crush a static gasket and cause a leak. The spring-like "recovery" characteristic of the corrugated metal core allows the gasket to compress and rebound with these flange movements, maintaining a constant sealing force at the crests of the corrugations. For applications with extreme or rapid cycling, we engineer gaskets with higher corrugation counts or recommend our double corrugated variant for maximum resilience.

Q: Are these gaskets reusable?

A: Generally, corrugated metal gaskets with soft fillers are not designed to be reused. During initial installation, the soft filler material flows into the microscopic imperfections of the flange faces and compresses to form the seal. Once disassembled, this filler material has been permanently deformed and compressed. Reusing the gasket will likely result in an inadequate seal because the filler cannot regain its original form and the corrugations may have taken a permanent set. For critical applications, Kaxite Seals always recommends installing a new gasket to ensure leak-free performance and joint safety.

Q: Do you provide gaskets for special flange types like tongue-and-groove or male-female faces?

A: Yes. Kaxite Seals manufactures corrugated gaskets for all standard and special flange facings. For tongue-and-groove (T/G) and male-female (M/F) flanges, we produce corrugated gaskets that fit precisely into the groove or female recess. These designs often omit the outer guide ring. The gasket's outer diameter (OD) and inner diameter (ID) are machined to very tight tolerances to ensure a proper fit within the confined space of the groove, providing a highly effective seal with minimal required bolting force for these confined flange types.

Applications of Kaxite Seals Corrugated Gaskets

The versatility of our corrugated gaskets makes them indispensable in numerous high-performance sectors.

Oil & Gas (Upstream, Midstream, Downstream): Wellhead equipment, Christmas trees, pipeline flanges, compressors, separators, reactors in refineries, and LNG heat exchangers.
Chemical & Petrochemical Processing: Reactors, columns, agitator shafts, heat exchangers, and pump connections handling corrosive acids, alkalis, and solvents.
Power Generation: Steam turbine casings, boiler feed pumps, heat recovery steam generators (HRSGs), and critical valve bonnets in both fossil fuel and nuclear plants.
Pharmaceutical & Food Processing: Sanitary and high-purity systems where cleanability and material traceability are paramount, often using 316L SS with PTFE filler.
Aerospace & Defense: High-integrity seals for fuel systems, hydraulic systems, and engine test stands where reliability under extreme conditions is non-negotiable.

View as

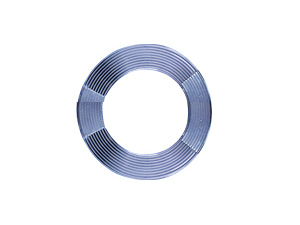

Corrugated Gaskets
