Leading Manufacturer of Spiral Wound Gasket Machinery for Industrial Solutions

Professional Manufacturing with Advanced Spiral Wound Gasket Machines

In the demanding world of industrial sealing, the precision and reliability of a spiral wound gasket are non-negotiable. These critical components form the backbone of leak-proof connections in pipelines, pressure vessels, and flanged assemblies across oil & gas, chemical processing, power generation, and petrochemical industries. The quality of the final gasket is intrinsically linked to the machinery that produces it. At Kaxite Seals, we understand that superior gaskets begin with superior manufacturing technology. Our state-of-the-art Machines For Spiral Wound Gaskets are engineered to deliver unmatched consistency, durability, and efficiency, empowering manufacturers to meet the highest international standards.

Our machines represent a fusion of robust mechanical engineering and intelligent control systems. They are designed to handle the precise winding of pre-graded metal strips (such as 304, 316 stainless steel, Monel, Inconel) and filler material (typically flexible graphite or PTFE) into a dense, concentric spiral. This process creates the characteristic V-shaped metallic convolution that provides the gasket's resilience and sealing force. Investing in a high-performance winding machine from Kaxite Seals is an investment in product excellence, reduced waste, and enhanced production throughput.

Core Technical Parameters & Specifications

Our range of machines is built to accommodate various production scales, from pilot batches to full-scale industrial manufacturing. Below are the detailed parameters that define our flagship models.

Key Machine Features & Capabilities

• Precision Winding Mechanism: Utilizes servo-driven spindles and guide systems for consistent pitch and tension control, ensuring uniform density across the entire gasket.
• Robust Frame Construction: Fabricated from high-strength steel to minimize vibration and maintain alignment during high-speed operation, guaranteeing long-term accuracy.
• User-Friendly CNC Interface: Touch-screen PLC control panel allows for easy input of gasket parameters (ID, OD, thickness, strip width), storing countless recipes for repeatability.
• Versatile Tooling System: Quick-change mandrels and guide rollers accommodate a wide range of gasket diameters, from small bore fittings to large-diameter vessel flanges.
• Integrated Safety Systems: Feature emergency stops, protective guarding, and fault diagnostics to ensure operator safety and machine integrity.
• Adaptable Strip & Filler Handling: Compatible with various metal strip thicknesses (0.15mm to 0.3mm) and filler material spools, allowing for production of multiple gasket grades.

Detailed Machine Specification Table

Advantages of Choosing Kaxite Seals Gasket Machines

The decision to source your production equipment from Kaxite Seals brings tangible benefits to your manufacturing floor.

• Uncompromising Quality Output: Our machines produce gaskets with precise dimensional tolerance and consistent density, which are critical for achieving proper compression and seal integrity under varying pressures and temperatures.
• Increased Production Efficiency: Automated controls and fast setup times reduce manual intervention, significantly increasing output rates and allowing operators to manage multiple machines.
• Reduced Material Waste: Precise tension control and accurate stopping mechanisms minimize overruns and errors, optimizing the use of expensive metal and filler materials.
• Enhanced Flexibility: The ability to quickly switch between gasket sizes and material specifications on a single machine makes small-batch and custom orders economically viable.
• Durability and Low Maintenance: Built with premium components and designed for continuous operation, Kaxite machines offer exceptional longevity with minimal scheduled maintenance.
• Technical Support and Training: We provide comprehensive installation, commissioning, and operator training, backed by readily available spare parts and expert technical support.

FAQ: Machines For Spiral Wound Gaskets

Integration and Production Workflow

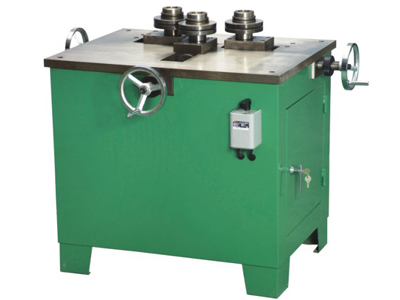

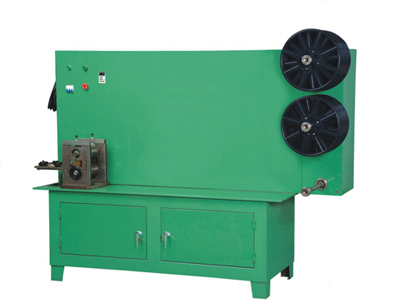

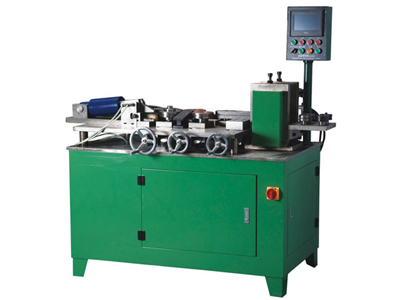

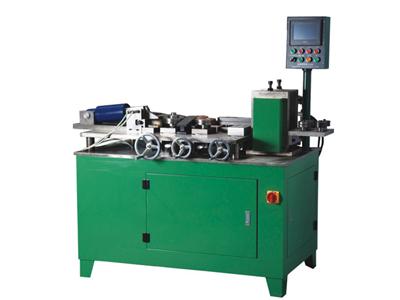

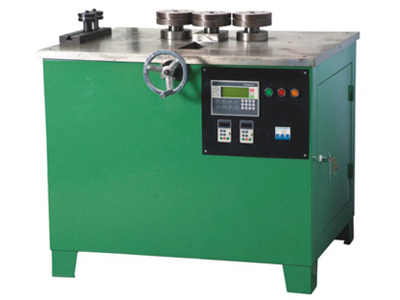

Implementing a Kaxite Seals winding machine integrates seamlessly into a broader gasket manufacturing workflow. The process typically begins with the decoiling and slitting of wide metal stock into precise narrow strips. These strips, along with spooled filler material, are then loaded onto the winding machine. The operator selects the job recipe from the CNC panel, which automatically sets the mandrel size, winding count, and tension. After the automated winding cycle is complete, the gasket spiral is cut, the end is secured (often via a spot weld or adhesive tag), and it is transferred to a conditioning press if required for specific flatness standards. Finally, the gasket may be fitted with inner and/or outer rings (centering rings) on separate assembly stations. Our machines are designed to be the reliable, high-precision core of this efficient production line.
