The Ultimate Guide to Serrated Gaskets: Precision Sealing for Demanding Applications

In the complex world of industrial sealing, where pressure, temperature, and media compatibility are relentless challenges, standard flat gaskets often fall short. This is where the engineered solution of serrated gaskets comes into play. As a cornerstone of reliable flange connections in critical service, serrated gaskets offer a unique combination of high seating stress, excellent creep resistance, and superior sealing performance. At Kaxite Seals, with decades of specialization in high-performance sealing solutions, we engineer serrated gaskets that meet the stringent demands of industries ranging from oil and gas and chemical processing to power generation and heavy machinery.

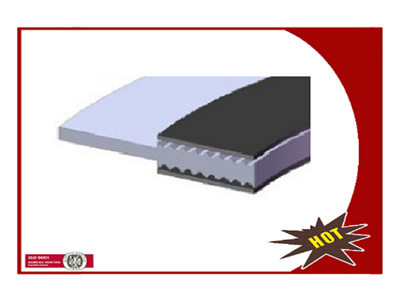

Unlike smooth surface gaskets, serrated gaskets feature concentric grooves or serrations machined onto both sealing faces. These serrations bite into the flange surface, creating multiple concentric seals and significantly increasing the surface pressure at the points of contact. This design minimizes the gasket's tendency to creep or relax under load, ensuring a leak-tight seal is maintained throughout operational cycles, thermal fluctuations, and system pressures.

Core Advantages of Kaxite Serrated Gaskets

• Exceptional Leak Tightness: The concentric serrations create multiple barrier seals, drastically reducing the leakage path and providing superior containment for liquids and gases.
• High Load Bearing & Creep Resistance: Designed to withstand high flange pressures without excessive compression set, maintaining bolt load and seal integrity over time.
• Reduced Flange Stress Requirement: Achieve an effective seal with lower bolt torque compared to many flat gaskets, which can be beneficial for delicate flanges or assembly.
• Excellent Temperature and Pressure Performance: Suitable for a wide range of temperatures and pressures, particularly in services involving steam, hydrocarbons, and aggressive chemicals.
• Material Versatility: Available in a wide selection of materials to ensure compatibility with virtually any process media.
• Reusability: When used within recommended limits and with undamaged flanges, serrated gaskets can often be reused, providing cost efficiency.

Detailed Product Parameters & Specifications

Kaxite Seals manufactures serrated gaskets to exacting standards. Our products are defined by precise parameters to ensure optimal performance and fit.

Standard Material Specifications

Standard Serration Profile & Dimensional Specifications

Standard Surface Finishes

• Smooth (Ra 32-63 µin): Standard finish for most industrial applications.
• Phosphate Coated: Provides corrosion resistance and acts as a minor anti-galling layer.
• Silver Plated: Used in high-temperature applications (e.g., steam) to prevent galling and seizing, and to improve sealing.
• Other Coatings: Available upon request (e.g., nickel, Teflon®) for specific chemical or anti-stick requirements.

Frequently Asked Questions (FAQ) About Serrated Gaskets

What is the primary function of the serrations on these gaskets?
The concentric serrations serve two critical functions. First, they concentrate the flange bolt load onto the sharp peaks of the teeth, creating very high localized contact pressure that forces the metal to deform and "bite" slightly into the flange surface. This creates multiple, discrete sealing rings. Second, the grooves provide controlled deformation zones, allowing the gasket to accommodate minor flange irregularities and thermal expansion while resisting overall creep relaxation.

When should I choose a serrated gasket over a standard flat ring gasket?
Serrated gaskets are the preferred choice in applications involving high internal pressure (typically above 150 psi/10 bar), elevated temperatures, or hazardous/expensive media where leakage is unacceptable. They are ideal for ASME B16.5 and B16.47 flanges in services like steam systems, hydrocarbon processing, and high-pressure fluid transfer. If you have experienced issues with flat gaskets blowing out, leaking, or requiring frequent re-torquing, a serrated gasket from Kaxite Seals is likely the solution.

What flange surface finish is required for serrated gaskets?
For optimal performance, the mating flange surfaces should have a smooth finish, typically between 125 and 250 µin Ra (3.2 to 6.3 µm Ra). A finish that is too rough can prevent the serrations from seating properly, while a mirror finish may increase the risk of galling. The flanges must be clean, undamaged, and free of old gasket material, pits, or deep scratches.

Can serrated gaskets be reused?
In many cases, yes. If the gasket is removed carefully without damaging the serrations and the flange faces remain in good condition, a serrated gasket can often be reused for the same service. However, inspection is crucial. If the teeth are flattened, corroded, or otherwise damaged, reuse is not recommended. For critical service, Kaxite Seals always recommends using a new gasket for assurance of leak-tight integrity.

How do I properly install and torque a serrated gasket?
Proper installation is key. Clean both flange faces thoroughly. Position the gasket concentrically. Use a cross-bolt tightening pattern (star pattern) to gradually bring the flanges together evenly. Apply torque in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to achieve uniform compression. Refer to the ASME PCC-1 guidelines or specific equipment manuals for recommended bolt torque values based on your bolt size, grade, and gasket material. Avoid over-torquing, which can crush the serrations and damage flanges.

What are the limitations of serrated gaskets?
While highly capable, they are not universal. They are generally not recommended for soft or coated flanges (e.g., enamel-lined) as the serrations can damage the surface. They may not be suitable for very low pressure or vacuum services unless a specific spiral-wound or phonographic style is used. Also, for services with severe thermal cycling, the differential expansion between the gasket and flange material must be considered in the selection process. Consulting with a Kaxite Seals engineer can help navigate these limitations.

How does Kaxite Seals ensure the quality of its serrated gaskets?
Every Kaxite Serrated Gasket is manufactured under a stringent quality management system. We start with certified raw materials, traceable to their mill test reports. Our CNC machining processes guarantee precise serration geometry, concentricity, and dimensional accuracy per customer drawings or ASME standards. Final inspection includes dimensional verification, visual examination for defects, and material certification provision. This end-to-end control ensures you receive a gasket that performs reliably under pressure.

Selecting the Right Serrated Gasket: A Kaxite Seals Guide

Choosing the correct serrated gasket involves a systematic assessment of your application parameters. Follow this guide to inform your specification when you contact Kaxite Seals.

1. Identify Service Conditions: Determine the maximum and minimum operating temperature, maximum internal pressure, and the full chemical composition of the media (including any trace elements).
2. Define Flange Specifications: Note the flange standard (ASME B16.5, B16.47, DIN, etc.), size, pressure class (e.g., 150#, 300#), and material. Inspect the flange surface condition.
3. Select Core Material: Based on step 1, choose the gasket material for corrosion resistance and strength (e.g., 316SS for chlorides, soft iron for high-pressure steam).
4. Choose Serration Profile & Thickness: Standard V-serration is common. For higher loads or softer flanges, consider a flat-top profile. Thickness is often 1/8" for standard applications but can vary based on flange gap and required crush.
5. Consider Surface Treatment: Decide if a coating like silver plating is needed for high-temperature anti-galling or if a standard finish is sufficient.
6. Consult with Experts: For non-standard, critical, or unfamiliar applications, provide all the above information to a Kaxite Seals technical specialist. We can validate your selection or recommend an optimized solution.

Industries and Applications We Serve

The robustness of Kaxite Serrated Gaskets makes them indispensable across a spectrum of heavy industries.

• Oil & Gas (Upstream, Midstream, Downstream): Wellhead equipment, Christmas trees, pipeline flanges, separators, compressors, and refinery process lines handling crude oil, natural gas, and refined products.
• Chemical & Petrochemical Processing: Reactors, distillation columns, heat exchangers, and valve bonnets handling corrosive acids, alkalis, and solvents at high pressures and temperatures.
• Power Generation: Steam turbine casings, boiler feed pumps, high-pressure steam lines, and auxiliary systems in fossil fuel, nuclear, and geothermal plants.
• Heavy Machinery & Hydraulics: Large diesel engines, hydraulic accumulators, press circuits, and mining equipment requiring high-pressure fluid containment.
• Marine & Shipbuilding: Engine room piping, fuel systems, and other critical high-pressure lines on vessels and offshore platforms.
