Manufacturer of Durable Mineral Fiber Packing Solutions for Industrial Sealing Applications

What is Mineral Fiber Packing?

Mineral fiber packing is a specialized sealing material engineered for demanding industrial applications involving high temperatures, aggressive media, and extreme pressures. It is manufactured from high-purity inorganic fibers, often derived from materials like rock wool or ceramic, which are then reinforced with various lubricants and binders. The resulting product is a braided or twisted packing style known for its exceptional thermal stability, chemical resistance, and longevity. Unlike organic packings, mineral fiber packing does not char or decompose rapidly under intense heat, making it the go-to solution for sealing pumps, valves, flanges, and expansion joints in industries such as power generation, chemical processing, metallurgy, and incineration.

At Kaxite Seals, we have refined the formulation and manufacturing of mineral fiber packings over decades, focusing on consistency, performance, and safety. Our products are designed to withstand the harshest conditions while providing reliable, leak-free service, reducing downtime and maintenance costs for our clients globally.

Key Features and Benefits of Kaxite Seals Mineral Fiber Packing

• Extreme Temperature Resistance: Capable of continuous operation from sub-zero temperatures up to 2600°F (1425°C), with short-term peaks even higher. This prevents packing failure in furnaces, boilers, and high-heat transfer lines.
• Superior Chemical Inertness: Resists attack from most acids, alkalis, solvents, and molten metals, ensuring integrity in corrosive environments common in chemical plants.
• Low Thermal Conductivity: Provides excellent insulation properties, protecting equipment housings and adjacent components from excessive heat.
• Non-Combustible & Asbestos-Free: Our packing is completely fireproof and manufactured with safe, modern mineral fibers, meeting the strictest health and safety regulations worldwide.
• High Mechanical Strength: The reinforced braided structure resists extrusion, shredding, and deformation under high gland pressures and shaft movement.
• Minimal Shaft Wear: Impregnated with high-temperature lubricants like graphite or PTFE, our packing ensures smooth operation with reduced friction and wear on expensive equipment shafts.
• Easy Installation & Adjustment: Supplied in spools or pre-formed rings, Kaxite packing is pliable and easy to install correctly, ensuring optimal sealing from the first start-up.

Technical Specifications & Product Parameters

Kaxite Seals offers a range of mineral fiber packings tailored for specific service conditions. Below are the detailed specifications for our flagship series, KX-MF 9000.

Available Grades & Configurations

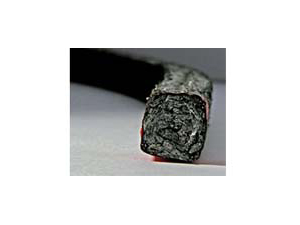

• KX-MF 9100 (Standard Grade): Graphite-impregnated for universal high-temperature service in non-oxidizing atmospheres. Ideal for boiler feed pumps, heat transfer fluids.
• KX-MF 9200 (High-Purity Grade): Contains ultra-fine, corrosion-inhibiting graphite. Recommended for aggressive chemical services and food/pharmaceutical applications requiring high purity.

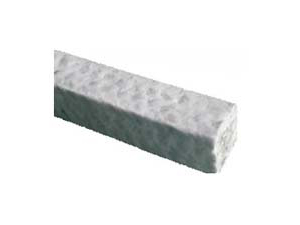

• KX-MF 9300 (PTFE-Enhanced Grade): Incorporates PTFE lubricants for superior anti-stick properties and lower friction in applications with sticky media or where graphite is not desired.
• KX-MF 9400 (Wire-Reinforced Grade): Integrates Inconel or stainless steel wire for exceptional mechanical strength and anti-extrusion in high-pressure valves and reciprocating pumps.

Typical Applications of Mineral Fiber Packing

Kaxite Seals mineral fiber packing is deployed across a wide spectrum of critical industries. Its reliability is proven in the following key applications:

• Power Generation: Sealing boiler feed pumps, soot blower seals, turbine bypass valves, and expansion joints in coal, gas, and biomass power plants.
• Chemical & Petrochemical: Reactor agitators, hot oil pumps, flue gas dampers, and valves handling acids, alkalis, and hydrocarbons at elevated temperatures.
• Steel & Metal Production: Ladle and tundish valves, furnace doors, oxygen lance seals, and continuous casting equipment exposed to molten metal splash.
• Incinerators & Waste-to-Energy: Sealing for ash screws, grate systems, and flue gas cleaning equipment where abrasive particulates and high temperatures are present.
• Glass & Ceramics Manufacturing: Lehr rolls, furnace dampers, and regenerator seals in high-temperature kilns and furnaces.

Frequently Asked Questions (FAQ) About Mineral Fiber Packing

Installation & Handling

Q: What is the proper procedure for installing mineral fiber packing?
A: Proper installation is critical. Clean the stuffing box thoroughly. Cut packing rings on a clean, sharp mandrel matching the shaft diameter, using a 45-degree staggered joint cut. Install rings one at a time, seating each firmly with a tamping tool and staggering joints by 90 degrees. Follow the manufacturer's recommended initial gland tightening torque—do not over-tighten. Allow for a run-in period and perform a final adjustment after the equipment has reached operating temperature.

Q: Can mineral fiber packing be used on rotating and reciprocating equipment?
A: Yes, Kaxite Seals mineral fiber packing is suitable for both. For rotating shafts (pumps), our standard braided construction is ideal. For reciprocating service (valve stems, plungers), we recommend our wire-reinforced KX-MF 9400 grade for superior resistance to the hammering action and extrusion.

Performance & Selection

Q: How do I choose between graphite-impregnated and PTFE-impregnated mineral fiber packing?
A: Graphite-impregnated packing (KX-MF 9100/9200) offers excellent thermal conductivity and self-lubrication at very high temperatures and is generally preferred for most severe heat applications. PTFE-impregnated packing (KX-MF 9300) provides outstanding chemical resistance to strong oxidizers and offers a lower coefficient of friction at moderate temperatures; it is also the choice for applications where carbon/graphite contamination must be avoided.

Q: What is the expected service life of mineral fiber packing?
A> Service life varies significantly based on operating conditions: temperature, media, shaft speed, surface finish, and alignment. Under optimal conditions with proper installation and adjustment, Kaxite mineral fiber packing can last from several months to multiple years. Regular monitoring and slight gland adjustments are key to maximizing lifespan.

Compatibility & Safety

Q: Is mineral fiber packing safe to handle? Is it similar to asbestos?
A: Kaxite Seals mineral fiber packing is 100% asbestos-free and manufactured from modern synthetic inorganic fibers. While the fibers are generally safe, we recommend standard industrial hygiene practices during handling and installation: use gloves, and if cutting or sanding generates dust, work in a well-ventilated area or use a dust mask (NIOSH N95 rating or better) to avoid inhalation of particulate matter.

Q: Is this packing suitable for use with potable water or food processing equipment?
A> Our KX-MF 9200 High-Purity Grade is specifically designed for such applications. It uses high-purity fibers and lubricants that meet relevant FDA guidelines for incidental food contact. Always consult the specific product data sheet and confirm compliance with your local and industry regulations before selection.

Troubleshooting

Q: Our mineral fiber packing is leaking excessively shortly after installation. What could be the cause?
A> Common causes include: 1) Incorrect packing size or grade for the application, 2) Improper installation (e.g., not staggering joints, using twisted rings), 3) Insufficient initial compression or, conversely, over-tightening the gland which can burn the packing, 4) A worn or scored shaft/stanchion that the packing cannot seal against, or 5) The packing was not given a proper run-in period with gradual tightening.

Q: Can mineral fiber packing be used to seal gases as well as liquids?
A: Yes, it is highly effective for sealing both. Its dense, resilient structure and high-temperature capability make it an excellent choice for sealing hot, aggressive gases like flue gas, steam, or process gases in valve stems and expansion joints. The same installation care is required, with particular attention to achieving an even, controlled gland load.
