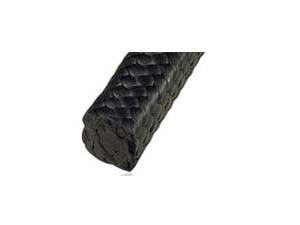

High-Performance Graphite PTFE Packing for Industrial Applications

Graphite PTFE Packing is a high-performance sealing solution engineered for demanding industrial applications where chemical resistance, thermal stability, and low friction are paramount. Combining the superior non-stick and chemical inertness of PTFE (Polytetrafluoroethylene) with the excellent thermal conductivity and self-lubricating properties of graphite, this material creates a robust, versatile seal. At Kaxite Seals, we specialize in manufacturing premium-grade Graphite PTFE Packing that meets the rigorous standards of modern processing plants, power generation facilities, and mechanical systems worldwide. This composite packing is designed to handle extreme pressures and temperatures while ensuring long service life and minimal maintenance, offering a reliable and cost-effective sealing alternative to traditional options.

What is Graphite PTFE Packing?

This packing is a composite material typically constructed from PTFE filaments or yarns that are impregnated, braided, or combined with high-purity graphite. PTFE provides an almost universal chemical resistance and a very low coefficient of friction. Graphite enhances the material's ability to withstand high temperatures and improves its thermal conductivity, allowing heat to dissipate more effectively from the sealing area. This synergy results in a packing that performs exceptionally well in challenging environments involving aggressive media, high shaft speeds, and elevated temperatures where other packings might fail.

Key Features and Benefits of Kaxite Graphite PTFE Packing

The unique composition of our packing delivers a host of operational advantages:

• Exceptional Chemical Resistance: Inert to nearly all industrial chemicals, solvents, and acids, making it suitable for a vast range of corrosive services.
• Wide Temperature Range: Can operate effectively from cryogenic temperatures up to +550°F (+288°C) in oxidizing atmospheres, and even higher in inert environments, thanks to the graphite component.
• Self-Lubricating & Low Friction: The inherent lubricity of both PTFE and graphite minimizes shaft or stem wear and reduces breakout and running torque, leading to energy savings.
• Excellent Thermal Conductivity: Graphite effectively transfers heat away from the shaft, reducing the risk of thermal damage to both the packing and the equipment.
• Conforms Easily: The braided structure allows the packing to conform well to the stuffing box and shaft, creating an effective seal with minimal adjustment.
• Long Service Life: Resists hardening, shrinking, and degradation, which extends maintenance intervals and reduces total cost of ownership.
• FDA Compliance Options: Certain grades of PTFE and graphite are suitable for use in food, beverage, and pharmaceutical applications where non-contamination is critical.

Technical Specifications & Product Parameters

Kaxite Seals produces Graphite PTFE Packing in various styles and sizes to meet specific application requirements. Below are the detailed technical parameters.

Standard Material Composition

• PTFE Component: High-purity, virgin PTFE filaments or expanded PTFE (ePTFE).
• Graphite Component: Flake or powder graphite, often in a high-purity (>99%) carbon content.
• Construction: Braided, twisted, or laminated. Braided constructions offer superior resilience and sealing force.
• Color: Typically black or dark gray due to the graphite content.

Performance Data Table

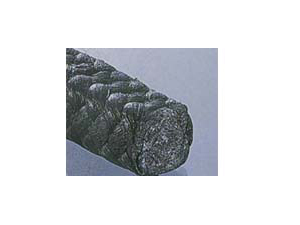

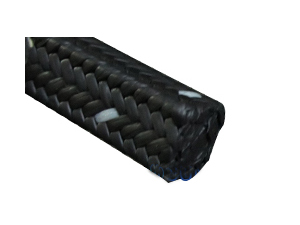

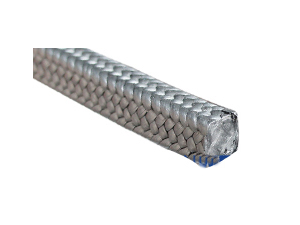

Available Styles and Sizes

Typical Applications for Graphite PTFE Packing

This versatile material is specified across numerous industries:

• Chemical & Petrochemical Processing: Sealing pumps, valves, and agitators handling acids, caustics, hydrocarbons, and solvents.
• Pharmaceutical & Food Production: In sanitary processing equipment where purity, cleanability, and non-toxicity are required.
• Power Generation: In boiler feed pumps, cooling water pumps, and other utility services in both conventional and nuclear plants.
• Pulp & Paper Industry: For equipment exposed to corrosive bleaching chemicals and high-temperature black liquor.
• Water & Wastewater Treatment: Sealing pumps and mixers in aggressive effluent environments.
• General Industrial: As a reliable, maintenance-friendly packing for centrifugal pumps, mixers, and valve stems in various services.

Graphite PTFE Packing - Frequently Asked Questions (FAQ)

Q: How does Graphite PTFE Packing compare to traditional asbestos or aramid fiber packings?
A: Graphite PTFE Packing is superior in terms of chemical resistance and temperature range when compared to aramid fibers. It is a direct, high-performance replacement for asbestos packings, offering similar thermal properties but without the health hazards. It generally provides lower friction and longer life, though initial cost may be higher. The total cost of ownership is often lower due to reduced maintenance and downtime.

Q: Can Kaxite Graphite PTFE Packing be used for rotary, reciprocating, and static applications?
A: Yes, it is highly versatile. The braided square style is most common for rotary pump shafts. Braided round or smaller square sizes work well on reciprocating rods (e.g., in compressors). It is also excellent for static sealing in gasket form, especially as laminated tape for flanges. The specific style and density should be selected based on the motion and service conditions.

Q: What is the proper installation procedure for this type of packing?
A: Proper installation is critical for performance. Clean the stuffing box and shaft thoroughly. Cut packing rings on a clean, sharp mandrel of the same diameter as the shaft, using a sharp knife. Stagger the ring joints by 90 degrees around the shaft. Install rings one at a time, seating each firmly using a split bushing or appropriate tool. Tighten the gland follower finger-tight only initially. After startup, allow the packing to run-in and heat up, then make gradual adjustments to the gland nut until a slight drip (1-2 drops per minute for pumps) is achieved. Overtightening will cause excessive heat and wear.

Q: Is external lubrication or cooling required for this packing?
A: Generally, no. One of the key benefits of Graphite PTFE Packing is its self-lubricating nature. The graphite and PTFE provide sufficient internal lubrication under normal operating conditions. In extremely high-temperature or high-speed applications, a cooling water flush to the lantern ring (if equipped) may be beneficial to extend life, but it is not typically required for standard services.

Q: How do I select the correct size and style of packing for my equipment?
A: You need three key measurements: shaft/stem diameter, stuffing box bore diameter, and stuffing box depth. The packing cross-section size is calculated as (Bore Diameter - Shaft Diameter) / 2. Always refer to the equipment manufacturer's manual for recommended packing specifications. For assistance, Kaxite Seals' technical support team can help you select the optimal product based on your exact service conditions—fluid, temperature, pressure, speed, and equipment type.

Q: Does this packing contain any metals or substances that could cause galvanic corrosion?
A: Standard Kaxite Graphite PTFE Packing is made from non-metallic materials—PTFE and carbon-based graphite. It will not cause galvanic corrosion on stainless steel or other metal shafts. However, it is always good practice to ensure the shaft or sleeve material is compatible with the process fluid itself.

Q: What are the signs that my Graphite PTFE Packing needs to be replaced?
A: Common indicators include a significant increase in leakage that cannot be controlled by adjusting the gland follower, a noticeable increase in power consumption or shaft torque, excessive heat generation at the stuffing box, or visible physical damage to the packing rings such as hardening, cracking, or extrusion. Regular preventive maintenance checks are recommended to monitor these conditions.

Why Choose Kaxite Seals for Your Graphite PTFE Packing?

Selecting Kaxite Seals means investing in quality, reliability, and expert support. Our packings are manufactured under strict quality control protocols using premium raw materials to ensure consistency and performance. We offer a range of constructions and sizes to provide the optimal seal for your specific application, not just a generic solution. Our technical team possesses deep industry knowledge and is ready to assist with selection, installation guidance, and troubleshooting. We are committed to providing sealing solutions that enhance your operational efficiency, reduce maintenance costs, and maximize equipment uptime.
