The Definitive Guide to High-Performance Copper Gaskets

In the world of industrial sealing, where extreme pressures, temperatures, and corrosive media are commonplace, the choice of gasket material is not just a detail—it's a critical engineering decision. Among the array of options, Copper Gaskets stand out for their unique combination of malleability, thermal conductivity, and resistance. For over two decades, Kaxite Seals has been at the forefront of precision sealing solutions, engineering copper gaskets that set the benchmark for reliability in the most demanding applications. This guide delves into the technical specifications, applications, and advantages of our premium copper gaskets.

Why Choose Copper for Critical Sealing Applications?

Copper is a ductile, malleable metal with excellent thermal and electrical conductivity. When used as a gasket material, it offers several inherent advantages that make it indispensable for specific industries:

• Exceptional Thermal Conductivity: Copper efficiently dissipates heat, preventing hotspots and ensuring stable operation in high-temperature environments like engines and exhaust systems.
• High Malleability (Conformability): Copper's softness allows it to deform under bolt load, effectively filling microscopic imperfections on flange surfaces to create a gas-tight or liquid-tight seal.
• Excellent Corrosion Resistance: Copper forms a protective patina layer, offering good resistance to many chemicals, water, and steam, making it ideal for plumbing, heating, and marine applications.
• Non-Magnetic & Non-Sparking: This property is crucial in electrical applications and environments where sparks pose an explosion hazard.
• Reusability: With proper handling, annealed copper gaskets can often be reused, providing cost-effectiveness over time.

Kaxite Seals Copper Gaskets: Precision Engineering and Material Excellence

At Kaxite Seals, we transform raw copper into high-integrity sealing components. Our process begins with selecting high-purity copper alloys, followed by precision stamping, machining, or laser cutting to meet exact dimensional tolerances. We offer both annealed (soft) and hard temper grades to suit specific pressure and reusability requirements.

Key Product Parameters and Specifications

Our copper gaskets are characterized by the following parameters. Understanding these will help you select the perfect seal for your application.

Standard Material Specifications

Common Gasket Profiles and Styles

Frequently Asked Questions (FAQ) About Copper Gaskets

Q: When should I use a copper gasket instead of a rubber or composite gasket?

A: Copper gaskets are the preferred choice in applications involving very high temperatures (exceeding the limits of elastomers), high thermal conductivity requirements, or where a "metal-to-metal" crush seal is specified. They are common in exhaust systems, industrial heating, certain chemical processing lines, and electrical grounding applications. For low-temperature, low-pressure sealing with high flexibility, rubber or composite gaskets may be more suitable and cost-effective.

Q: How do I ensure a proper seal when installing a copper gasket?

A: Proper installation is critical. First, ensure both flange surfaces are clean, dry, and free of old gasket material and debris. The surface finish is important; a smooth finish (around 125-250 µin Ra) is ideal for copper. Apply the gasket dry—never use sealants like silicone or thread tape, as they can compromise the metal-to-metal seal and cause extrusion. Use a calibrated torque wrench to tighten bolts in a star or criss-cross pattern to the manufacturer's specified torque, achieving even compression across the gasket face.

Q: Can Kaxite Seals copper gaskets be reused?

A: Annealed (soft) copper gaskets can sometimes be reused if they are carefully removed, are not overly compressed (flattened), and show no signs of cracking, deep scoring, or severe deformation. Hard temper gaskets have a higher likelihood of successful reuse. However, Kaxite Seals generally recommends using a new gasket for critical applications to guarantee seal integrity, as reusability depends heavily on specific service conditions and disassembly procedures.

Q: What is the difference between C11000 and OFHC (C10100) copper for gaskets?

A: C11000 (ETP Copper) contains a small amount of oxygen, which is fine for most sealing applications. C10100, Oxygen-Free High Conductivity (OFHC) copper, has virtually all oxygen removed. OFHC is superior in applications involving high-temperature reducing atmospheres (like hydrogen) or very high vacuum, where the oxygen in ETP copper can lead to embrittlement or outgassing. For standard plumbing, heating, and many engine applications, C11000 from Kaxite Seals offers excellent performance and value.

Q: My application involves vacuum. Are your copper gaskets suitable?

A: Yes, copper gaskets are a standard choice for vacuum flange systems, particularly in ConFlat (CF) style flanges. For ultra-high vacuum (UHV) applications, Kaxite Seals recommends gaskets made from OFHC copper (C10100) to minimize outgassing. The high malleability of copper allows it to form a perfect seal against the hard knife-edge of a CF flange, creating a reliable, bakeable seal essential for maintaining high vacuum levels.

Q: Does Kaxite Seals offer custom-shaped or large-diameter copper gaskets?

A: Absolutely. Customization is a core strength at Kaxite Seals. We specialize in producing copper gaskets from customer-supplied drawings or samples, including non-standard shapes, large diameters (beyond our standard range), and specific tolerance requirements. Our engineering team can also provide consultation on the optimal gasket design for your unique application.

Industries and Applications Served by Kaxite Seals Copper Gaskets

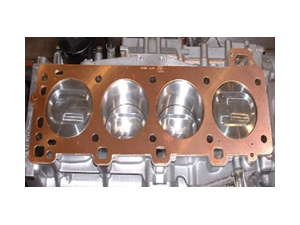

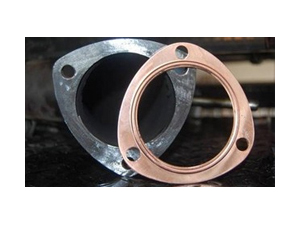

• Automotive & Aerospace: Exhaust manifold gaskets, turbocharger seals, cylinder head gasket shims, combustion chamber seals.
• Oil & Gas: Ring Type Joint (RTJ) gaskets for wellheads, christmas trees, and high-pressure piping (API standards).
• Power Generation & Heating: Boiler manways, heat exchanger seals, steam line flanges, solar thermal systems.
• Industrial Manufacturing: Hydraulic and pneumatic systems, compressor fittings, industrial oven doors.
• Semiconductor & Vacuum Technology: Seals for vacuum chambers, feedthroughs, and ConFlat flanges in processing equipment.
• Marine & Plumbing: Seals for sea water lines, hot water tanks, pump housings, and high-end plumbing fixtures.
