When industrial operations demand reliability under extreme pressure, temperature, and chemical exposure, the sealing solution at the heart of the system cannot be an afterthought. For decades, engineers and maintenance professionals have turned to a material renowned for its inherent stability and versatility: Graphite Packing. Unlike traditional braided packings, graphite-based seals offer a unique combination of thermal conductivity, self-lubrication, and chemical inertness, making them indispensable in the most challenging environments. At Kaxite Seals, we have refined the science of graphite sealing, engineering our packing solutions to deliver uncompromising performance, extended service life, and reduced total cost of ownership for our global clients.

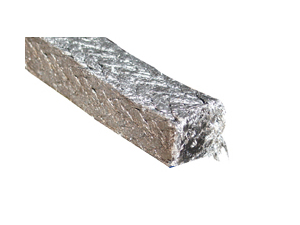

Kaxite Seals' Graphite Packing is manufactured from high-purity, flexible graphite foil, carefully wound or die-formed to create homogeneous, void-free sealing rings or spool lengths. This process ensures consistent density and uniform performance throughout the entire seal. Our material is not simply compressed graphite flake; it is a engineered product designed to maintain its integrity from cryogenic temperatures up to intense heat, all while resisting a vast array of aggressive media. Whether sealing superheated steam in power generation, corrosive chemicals in processing plants, or volatile hydrocarbons in refining, our packing provides a robust and reliable barrier against leakage.
Core Advantages of Kaxite Graphite Packing
- Exceptional Temperature Range: Performs reliably from -400°F to 3000°F (-240°C to 1650°C) in inert or reducing atmospheres, and up to 850°F (454°C) in oxidizing environments.
- Superior Chemical Resistance: Inert to most acids, alkalis, solvents, and hydrocarbons, ensuring compatibility with a vast spectrum of process fluids.
- Excellent Thermal Conductivity: Rapidly dissipates heat away from the shaft or stem, reducing the risk of thermal damage to equipment components.
- Self-Lubricating Properties: The layered structure of graphite provides inherent lubrication, minimizing friction, wear on the shaft, and required gland adjustment.
- Low Creep and Relaxation: Maintains sealing force over long periods and thermal cycles, preventing frequent re-tightening and associated downtime.
- Flexibility and Conformability: Easily conforms to irregular surfaces, valve stems, and slight misalignments, creating an effective seal quickly.
- Non-Contaminating: Pure, additive-free graphite will not foul or contaminate sensitive process streams.
Kaxite Graphite Packing: Detailed Product Specifications
To ensure proper selection and application, the following tables detail the key parameters and standard forms of our graphite packing products.
Material Composition & Physical Properties
| Property | Specification / Value | Test Standard |
|---|---|---|
| Base Material | High-Purity, Exfoliated Flexible Graphite (Min. 99% Carbon) | ASTM D7542 |
| Temperature Limit (Inert) | 3000°F / 1650°C | - |
| Temperature Limit (Oxidizing) | 850°F / 454°C (with optional inhibitors) | - |
| Density (Typical) | 90 - 110 lbs/ft³ (1.45 - 1.76 g/cm³) | ASTM D3800 |
| Tensile Strength | 1500 - 2500 psi (Machine Direction) | ASTM D828 |
| Compression Recovery | > 40% | ASTM F36 |
| Ash Content | < 1% | ASTM D5630 |
| pH Value | 5 - 7 (Neutral) | ASTM E70 |
Standard Product Forms & Dimensions

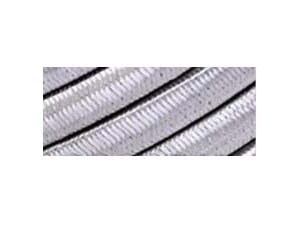

| Form Factor | Description | Standard Sizes (Inside Diameter x Cross-Section) | Primary Application |
|---|---|---|---|
| Die-Formed Rings | Pre-molded, homogeneous rings for precise fit in stuffing boxes. | 0.25" to 24" ID x 0.125", 0.25", 0.375", 0.5", 0.625", 0.75" CS | Pumps, Valves, New Installations |
| Spool Packing | Continuous length of graphite tape, wound and compressed on a spool. | 0.125" to 1.0" square cross-section, spools of 50ft, 100ft, 500ft. | Field Repairs, Large Diameter Stems, Custom Sizing |
| Laminated/Reinforced Styles | Graphite foil laminated with Inconel or SS 304/316 foils for enhanced strength. | Standard ring sizes or custom. Foil thickness: 0.004" - 0.020". | High-Pressure Steam, Agressive Chemicals, High Vibration |
| Corrugated Ribbon | Corrugated graphite ribbon for spiral winding around rods or into cavities. | Widths: 0.25" to 2.0". Thickness: 0.015" to 0.060". | Large Flanges, Heat Exchangers, Expansion Joints |
Frequently Asked Questions (FAQ) on Graphite Packing
Q: What is the primary difference between braided packing and graphite packing?
A: Braided packing (e.g., aramid, PTFE, fiberglass) is typically a yarn-based product that relies on lubricants and may require a break-in period. Graphite packing, especially from Kaxite Seals, is made from solid, flexible graphite. It is self-lubricating, has a much wider temperature range, offers better chemical resistance, and seals effectively immediately upon installation with minimal gland adjustment.
Q: Can Kaxite Graphite Packing be used on rotating equipment like pump shafts?
A: Yes, but with important considerations. Pure graphite packing is excellent for reciprocating and slow-rotating shafts. For high-speed rotary applications, we often recommend our laminated styles with metal foil reinforcement. This adds strength, reduces wear, and prevents extrusion under centrifugal force. Always consult our engineering team for high-speed (> 1200 RPM) service.
Q: How do I handle and install graphite packing to avoid damage?
A: Graphite is fragile in its dry state. Handle rings carefully to avoid cracking. Clean the stuffing box and shaft/stem thoroughly. Install rings one at a time, staggering joints by 90 degrees. Use a proper sizing mandrel for ring sizing—never stretch the ring. Tighten the gland follower evenly and only finger-tight initially. After startup, perform a single, minor thermal adjustment once the system reaches operating temperature.
Q: Is graphite packing safe for use in oxygen or strong oxidizer service?
A: Standard flexible graphite is not recommended for pure oxygen, chlorine, or other strong oxidizing agents at elevated temperatures, as it can oxidize. For such services, Kaxite Seals offers specially treated graphite packing with oxidation inhibitors. It is critical to provide full service details (media, concentration, temperature, pressure) for our engineers to recommend a safe, compatible product.
Q: How long does graphite packing typically last compared to other types?
A: Service life varies greatly based on application conditions (temperature, pressure, media, shaft speed). However, due to its stability and low wear, graphite packing often lasts 3 to 5 times longer than traditional braided packings in high-temperature or corrosive services. This extended life significantly reduces maintenance frequency, downtime, and total sealing cost.
Q: Can I use graphite packing in food, beverage, or pharmaceutical applications?
A: Yes. Our high-purity, additive-free graphite packing is compliant with FDA regulations 21 CFR §178.3620 for use in food processing equipment. It is non-toxic, non-contaminating, and will not support bacterial growth, making it suitable for sanitary applications when specified correctly.
Q: My application involves thermal cycling (repeated heating and cooling). Is graphite packing suitable?
A: This is one of graphite's key strengths. Its low coefficient of thermal expansion and excellent recovery from compression allow it to maintain a tight seal through repeated thermal cycles where other materials might fail due to creep, hardening, or shrinkage. Kaxite's homogeneous structure is particularly effective in cycling applications.

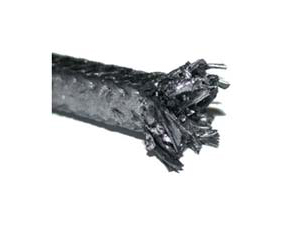

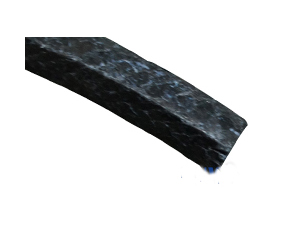

Selecting the Right Graphite Packing for Your Application
Correct selection is paramount. While our standard flexible graphite packing suits a majority of applications, demanding conditions may require a specialized variant. Kaxite Seals provides a comprehensive range:

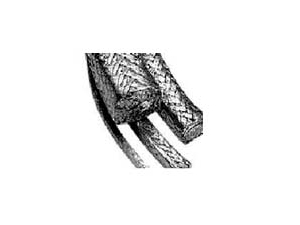

- Standard Flexible Graphite: For general high-temperature steam, hot oils, and chemical services.

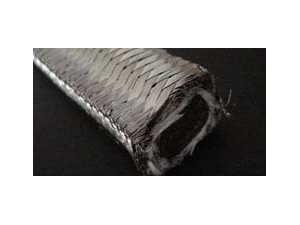

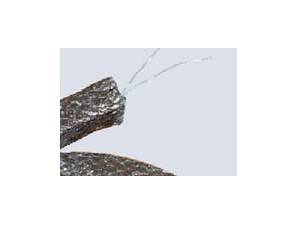

- Laminate-Reinforced Graphite: Incorporates metal foils (SS, Inconel, Monel) for extreme pressure (> 2000 psi), high shaft speeds, or to prevent extrusion in large clearances.
- Oxidation-Inhibited Graphite: Treated with proprietary inhibitors for extended service in mildly oxidizing atmospheres up to 950°F.
- High-Purity Nuclear Grade: Manufactured with ultra-low chlorine and sulfur content for nuclear and other critical purity applications.
Providing accurate application data ensures you receive the optimal product. Essential information includes: Equipment Type (Valve, Pump, Agitator), Shaft/Stem Diameter, Stuffing Box Depth, Process Media & Concentration, Operating Temperature & Pressure, pH, and Shaft Speed (if rotating). Kaxite Seals' technical support team utilizes this data to guarantee a perfect fit and performance.
