The Essential Guide to Rubber Gaskets: Engineering, Selection, and Performance

For over two decades in the sealing industry, one truth remains constant: the critical role of the rubber gasket. As a foundational component in countless applications, from industrial machinery to household appliances, the right gasket ensures system integrity, prevents leaks, and protects sensitive components. At Kaxite Seals, we combine decades of material science expertise with precision manufacturing to deliver sealing solutions that meet the most demanding specifications. This guide delves into the technical parameters, selection criteria, and common questions surrounding rubber gaskets, providing the detailed insight engineers, procurement specialists, and maintenance professionals need.

Core Material Parameters and Specifications

The performance of a rubber gasket is dictated by its material composition. Selecting the correct elastomer is the first and most crucial step. Below are the key parameters for our most commonly used materials at Kaxite Seals.

Primary Elastomer Types and Properties

• Nitrile Rubber (NBR/Buna-N): Excellent resistance to oils, fuels, and hydrocarbons. Ideal for automotive and fuel system applications.
• Ethylene Propylene Diene Monomer (EPDM): Superior weathering, ozone, and steam resistance. Perfect for outdoor applications, automotive cooling systems, and HVAC.
• Fluoroelastomer (FKM/Viton®) Exceptional high-temperature and chemical resistance. Used in aggressive chemical and aerospace environments.
• Silicone Rubber (VMQ): Stable across a wide temperature range, flexible, and biocompatible. Common in food, medical, and high/low-temperature sealing.
• Neoprene (CR): Good all-purpose resistance to weather, ozone, and moderate oils. Often used in refrigeration and marine applications.
• Natural Rubber (NR) High resilience and tensile strength. Suitable for applications involving water, alcohols, and low-pressure sealing.

Detailed Material Performance Table

Critical Design and Dimensional Specifications

Beyond material, the physical design of the gasket determines its sealing capability. Kaxite Seals manufactures to exacting dimensional standards, including AS568, DIN, JIS, and custom profiles.

Standard O-Ring Cross-Section (AS568) Dimensions

Custom Gasket Profile Specifications

• Profile Type: D-rings, X-rings, Square-cuts, Cord, Sheet, and Complex Molded Shapes.
• Tolerance Standards: ISO 3601-1 for O-rings, ISO 3302 for molded parts, or customer-defined.
• Surface Finish: Controlled surface texture to optimize sealing without excess friction.
• Compression Set: ASTM D395 tested; Kaxite grades typically achieve <20% for long-term seal integrity.

Frequently Asked Questions (FAQ) About Rubber Gaskets

Q: What is the main difference between a gasket and an O-ring?

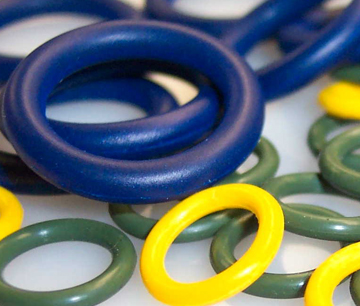

A: Both are seals, but their application differs. An O-ring is a specific torus (doughnut) shape that sits in a gland and seals via radial compression. A gasket is a broader term for any sealing element placed between two flanges or surfaces, often to seal against fluids or gases. Gaskets can be O-rings, sheets, or complex molded shapes. O-rings are a subset of gaskets designed for dynamic or static sealing in confined grooves.

Q: How do I select the right rubber material for my application?
A: Selection is based on three primary factors: the media (what fluid or gas is being sealed), the temperature range (both continuous and peak), and the pressure. First, cross-reference the chemical compatibility of the elastomer with your media using a compatibility chart. Second, ensure the material's temperature range exceeds your operating conditions. Finally, verify the hardness and design can handle the system pressure. Kaxite Seals provides detailed technical datasheets and application engineering support for this process.

Q: Why is hardness (Shore A durometer) important, and what value should I choose?
A: Hardness indicates the material's resistance to indentation. A lower durometer (e.g., 50 Shore A) is softer, conforms better to rough surfaces, and requires less sealing force, ideal for low-pressure or uneven flanges. A higher durometer (e.g., 80 Shore A) is harder, more resistant to extrusion, and better for high-pressure systems. A common all-around choice is 70 Shore A. The correct choice balances sealability with resistance to extrusion and wear.

Q: What causes a rubber gasket to fail prematurely?
A: Common failure modes include: Chemical Degradation: Swelling, cracking, or softening due to incompatible media. Compression Set: The gasket loses elasticity and fails to spring back, often from excessive temperature or improper material. Extrusion and Nibbling: Pieces of the gasket are sheared off into the system due to high pressure or excessive gland clearance. Thermal Degradation: Cracking, hardening, or becoming brittle from exceeding the upper temperature limit. Improper Installation: Pinching, twisting, or incorrect gland design.

Q: Can Kaxite Seals produce custom-shaped gaskets, and what information is needed for a quote?
A: Yes, custom molding is a core specialty at Kaxite Seals. To provide an accurate quote and design, we require: 1) A detailed drawing or sample of the part with all critical dimensions and tolerances. 2) The application environment (media, temperature, pressure). 3) The required material specification or performance attributes. 4) The annual or per-order quantity. Our engineering team can then advise on the optimal material and manufacturing process for your needs.

Q: How should rubber gaskets be stored to maximize shelf life?
A: Proper storage is crucial. Gaskets should be kept in a cool, dark, and dry environment, ideally between 10°C and 25°C (50°F and 77°F). They must be protected from direct sunlight, ozone sources (like electric motors), and high humidity. Avoid stretching, compressing, or hanging them. Store them flat in sealed, opaque bags away from chemicals. Under these conditions, most rubber gaskets from Kaxite Seals have a recommended shelf life of 10 years or more.

Q: What certifications or testing standards do Kaxite Seals products comply with?
A: Our manufacturing processes and materials comply with a range of international standards. We routinely test to ASTM (American Society for Testing and Materials), ISO (International Organization for Standardization), and DIN (Deutsches Institut für Normung) methods. Specific products can be certified for industries requiring RoHS, REACH, FDA (for certain silicone grades), and NSF/ANSI 61 for potable water applications. Please inquire about specific certification requirements for your project.
