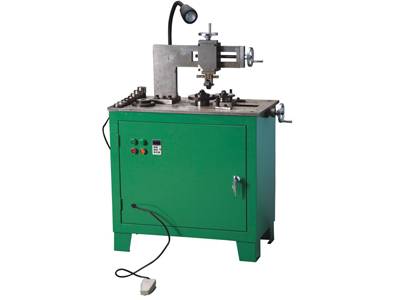

High-Quality Double Jacketed Gaskets Manufacturing Machine for Bulk OEM Solutions

A Machine for Double Jacketed Gaskets is an essential piece of industrial equipment designed for the high-volume, precise manufacturing of a critical sealing component: the double jacketed gasket. These gaskets are widely used in demanding applications across the pharmaceutical, biotechnology, chemical, and food & beverage industries, where they provide a superior, leak-proof seal for process vessels, reactors, and pipe flanges. At Kaxite Seals, we engineer and build advanced machines that set the standard for reliability, precision, and efficiency in gasket production. Our machinery ensures that every double jacketed gasket produced meets the stringent quality and consistency requirements of modern process industries. ### The Engineering Excellence of Kaxite Seals Gasket Machinery The core function of our machine is to automate and perfect the process of inserting a soft, compressible filler material (typically PTFE) into a precisely formed metal jacket (often 304 or 316 stainless steel). This creates a gasket with the chemical resistance and pressure-bearing capability of metal, combined with the excellent sealing properties of the soft filler. Manual assembly is time-consuming, inconsistent, and unsuitable for production scales. The Kaxite Seals machine solves this with a robust, automated system. **Key Operational Advantages:** * **Unmatched Precision:** Automated material feeding and forming ensure every gasket has consistent filler density and precise jacket closure, eliminating weak points and potential leak paths. * **High Production Output:** Dramatically increases production speed compared to manual methods, allowing manufacturers to meet large order volumes efficiently. * **Superior Consistency:** Removes human error, guaranteeing that every gasket in a batch is identical, which is crucial for quality control and regulatory compliance (e.g., cGMP). * **Material Efficiency:** Precise control minimizes waste of both the costly metal jacket material and the filler polymer, optimizing raw material usage. * **Operator Safety & Ergonomics:** Automates what would otherwise be a manual, repetitive task, reducing operator fatigue and risk of injury. ### Technical Specifications & Product Parameters Our machines are built with industrial durability and precision engineering. Below are the detailed specifications for our flagship model, the KAX-DJG ProSeries. **Machine for Double Jacketed Gaskets - KAX-DJG ProSeries Core Specifications** | **Category** | **Specification** | **Details / Description** | | :--- | :--- | :--- | | **General Model** | KAX-DJG ProSeries 2500 | Designed for high-volume production of standard and custom gaskets. | | **Power Requirements** | Electrical Supply | 400V / 50Hz / 3-Phase (Configurable for 480V / 60Hz). | | **Power Consumption** | Nominal Load | 5.5 kW. | | **Machine Dimensions (LxWxH)** | Footprint | 2200 mm x 1200 mm x 1800 mm. | | **Machine Weight** | Net Weight | Approx. 1850 kg. | | **Control System** | Interface | Industrial-grade 10" HMI (Human-Machine Interface) Touchscreen. | | | Programming | PLC-based with recipe storage for different gasket sizes and materials. | | **Production Capacity** | Speed Range | 80 to 150 finished gaskets per hour (dependent on size and complexity). | | **Gasket Size Range** | Inner Diameter (ID) | From 25 mm (1") to 600 mm (24"). | | | Outer Diameter (OD) | Customizable based on jacket and filler specifications. | | **Jacket Material Compatibility**| Metal Types | 304 SS, 316L SS, Nickel, Inconel, Hastelloy, and other formable alloys. | | | Jacket Profile | Accepts pre-formed "C-shaped" or "U-shaped" metal jackets. | | **Filler Material Compatibility**| Primary Material | PTFE (Skived tape or cord), Expanded PTFE, Graphite-based sheets. | | | Filler Feeding | Precision servo-driven roll feed and cutting system. | | **Core Functions** | Operations | Automated filler insertion, length measurement, end closure forming, and compression. | | **Safety Features** | Standards | CE Certified. Includes emergency stop, two-hand operation cycle initiation, safety light curtains, and mechanical guarding. | | **Air Supply** | Requirement | Clean, dry compressed air at 6-8 bar, 250 l/min. | | **Software** | Features | Production counting, fault diagnostics, maintenance alerts, and data logging. | **Available Configurations & Options:** * **KAX-DJG StandardSeries:** A robust entry-level model for smaller production runs and standard gasket sizes. * **Custom Tooling Packages:** Tailored forming dies and inserts for non-standard gasket profiles or specialized metal jackets. * **Automated Infeed/Outfeed Systems:** Conveyor belt or robotic arm integration for fully automated production lines. * **Enhanced Vision Systems:** For 100% automated visual inspection of filler placement and final closure integrity. * **Special Material Kits:** Upgraded components for processing highly abrasive or specialized filler materials. ### Deep Dive: How the Kaxite Seals Machine Works The manufacturing process within our machine is a symphony of precision engineering: 1. **Jacket Loading:** The operator or an automated system loads the pre-formed metal jacket into the precision holding nest. 2. **Filler Preparation & Insertion:** The chosen filler material (e.g., PTFE tape) is fed from a large roll. A servo-mechanism measures and cuts the exact length required. A patented insertion tool then uniformly places the filler into the channel of the metal jacket without tearing or stretching. 3. **Forming & Closure:** This is the critical phase. The machine's forming head applies calibrated pressure to fold and crimp the open ends of the metal jacket over the filler material. The Kaxite Seals technology ensures a uniform, smooth, and mechanically secure closure without damaging the jacket's finish or over-compressing the filler. 4. **Compression & Finishing:** For certain gasket types, a final compression stage ensures optimal filler density and gasket thickness, readying it for immediate use or packaging. 5. **Ejection & Quality Check:** The finished double jacketed gasket is ejected. The process is monitored by the PLC, and optional systems can perform automated dimensional checks. ### Frequently Asked Questions (FAQ) About the Machine for Double Jacketed Gaskets **What industries most commonly use double jacketed gaskets produced by this machine?** These gaskets are indispensable in industries requiring hygienic, sterile, or corrosion-resistant sealing. Primary users include pharmaceutical and biotech companies (for reactors, fermenters), fine chemical processors, food & beverage plants (especially dairy and brewing), and semiconductor manufacturers. Any application involving frequent cleaning (CIP/SIP), temperature cycling, or aggressive chemicals is a prime candidate. **What are the main benefits of automating gasket production with your machine versus manual assembly?** Automation with a Kaxite Seals machine delivers four paramount benefits: **Quality Consistency** (every gasket is identical, ensuring reliable sealing performance), **Significantly Higher Output** (increases production by 300-500%), **Reduced Labor Cost & Dependency** (one machine does the work of several skilled operators), and **Minimized Material Waste** (precise cutting and insertion save costly PTFE and metal). It also provides traceability through production data logging. **Can the Kaxite Seals machine handle different sizes and types of gaskets?** Absolutely. Our machines are designed for high flexibility. The KAX-DJG ProSeries can produce gaskets from 1-inch to 24-inch inner diameter by changing the forming nests and adjusting parameters on the HMI. It is compatible with various metal jacket profiles (like standard "C" shapes) and can process different filler materials like white PTFE, graphite-filled PTFE, or expanded PTFE by adjusting feed tension and cutting parameters. **How difficult is it to operate and maintain the machine?** Kaxite Seals machines are built for operational simplicity. The intuitive touchscreen HMI guides the operator through setup using stored recipes. Routine maintenance primarily involves cleaning, lubricating guide rails, and checking pneumatic filters—all outlined in clear manuals. We provide comprehensive on-site training during installation and detailed documentation. Our global support network is available for technical assistance. **What is the typical lead time and what support do you offer after purchase?** Lead time for a standard machine model is typically 10-14 weeks from order confirmation. Kaxite Seals provides full turnkey support: detailed pre-sale engineering consultation, professional installation and commissioning, thorough operator and maintenance training, a comprehensive one-year warranty on parts and labor, and lifelong access to technical support and spare parts. **How does the machine ensure the quality of the final gasket product?** Quality is engineered into every step. The precision servo-driven filler feed guarantees exact length and placement. The patented forming mechanism applies consistent, calibrated pressure for a perfect closure every time. The PLC monitors all critical parameters (pressure, cycle time, position) and will fault if any deviate from the set recipe. This process control is far superior to manual methods and ensures every gasket meets spec. **Are your machines compliant with international safety and manufacturing standards?** Yes. All Kaxite Seals machines are designed and manufactured to comply with stringent international standards. They are CE marked, indicating conformity with health, safety, and environmental protection standards for products sold within the European Economic Area. They incorporate essential safety features like guarded moving parts, two-hand controls, emergency stops, and safety light curtains. **Can the machine be integrated into a fully automated production line?** Certainly. Our machines are built with Industry 4.0 integration in mind. They feature standard industrial communication protocols (Ethernet/IP, Profinet, Modbus TCP) for connectivity to Factory PLCs or MES systems. We offer optional automated jacket feeders and finished gasket conveyors or robotic pick-and-place units to create a complete, lights-out manufacturing cell for double jacketed gaskets.
