Expert Guide to Machines for Braiding Packing

In the demanding world of industrial sealing, the quality of braided packing is paramount. This critical component, used to prevent leakage in pumps, valves, and rotating equipment, relies heavily on the precision and capability of the machinery that produces it. For over two decades, Kaxite Seals has been at the forefront of sealing technology, not only supplying premium braided packing but also engineering and providing the advanced machines that set the standard for manufacturing excellence. This guide delves into the technical specifications, operational benefits, and key considerations of modern braiding machinery for packing production.

Core Technical Parameters of Braiding Machines

The performance of a braiding machine is defined by a set of critical technical parameters. Understanding these specifications is essential for selecting equipment that matches your production goals for material type, packing density, and final product dimensions.

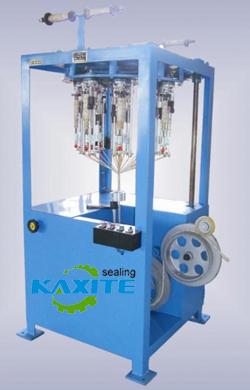

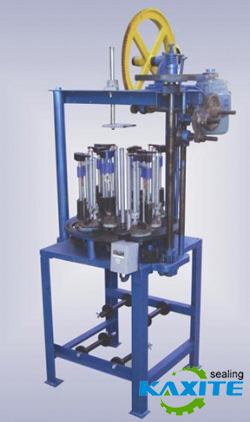

Number of Carriers (Bobbin Count): This is the primary determinant of braid density and pattern complexity. Machines typically range from 16 to 144 carriers.

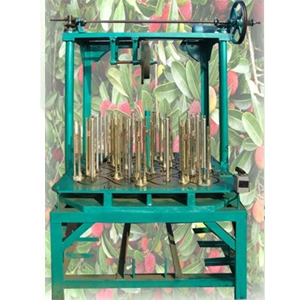

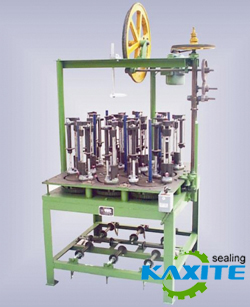

- 16-36 Carriers: Ideal for standard, round braids used in general-purpose packing.
- 48-72 Carriers: Used for high-density, square braids required in high-pressure applications.
- 96+ Carriers: Employed for specialized, ultra-dense braids or complex patterns with multiple material types.
Braid Diameter Range: The minimum and maximum diameter of the core around which the packing is braided. This dictates the final size of the packing cord.
- Standard Range: 3mm to 50mm (1/8" to 2").
- Heavy-Duty Range: Up to 100mm (4") or more for large bore valve stems.
Take-Up Speed: The linear speed at which the braided product is wound onto the spool, measured in meters per minute (mpm). Higher speeds increase production throughput.
- Standard: 10 - 30 mpm.
- High-Speed: 30 - 60 mpm.
Bobbin (Spool) Capacity: The volume of yarn or filament a single carrier can hold, affecting runtime between material changes. Measured in weight (grams or kilograms) per bobbin.
Drive System & Control: Modern machines feature servo-motor drives and PLC (Programmable Logic Controller) systems for precise speed, tension, and pattern control, ensuring consistent braid quality.

Specification Comparison Table: Kaxite Seals Braiding Machine Series
Model Series	Carrier Configuration	Braid Diameter Range	Max Take-Up Speed	Primary Braid Pattern	Typical Application
KX-BM Standard	24, 32, 36	4mm - 25mm	25 mpm	Round, Square	General Service Packing (Graphite, Aramid, PTFE)
KX-BM HD (High-Density)	48, 64, 72	6mm - 50mm	20 mpm	Square, Interlocked	High-Pressure Pump & Valve Packing
KX-BM HS (High-Speed)	24, 32	3mm - 20mm	55 mpm	Round	High-Volume Production of Standard Sizes
KX-BM Multi-Axial	96, 120, 144	10mm - 100mm	15 mpm	Complex 3D/Multi-Layer	Specialty & Custom Packing for Extreme Conditions

Critical Features for Optimal Packing Production

Beyond basic parameters, several engineered features differentiate a capable machine from an exceptional one. Kaxite Seals integrates these features to ensure reliability and product quality.

Precision Tension Control System: Individual or sectional tension control on each carrier is crucial. It prevents yarn breakage, ensures uniform braid density, and eliminates weak spots in the final packing. Our systems offer real-time monitoring and automatic compensation.
Versatile Braid Pattern Programming: The ability to switch between round, square, diamond, and interlocked braids via the PLC interface allows for flexible production without mechanical changeovers.

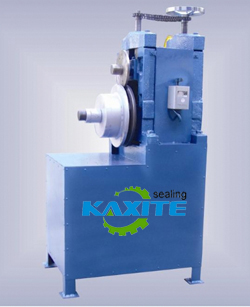

Integrated Impregnation System (Optional): Some advanced models include a post-braiding station to apply lubricants (e.g., PTFE, graphite) or sealants directly during the winding process, creating finished, ready-to-use packing.
Robust Frame & Vibration Damping: A heavy, rigid frame minimizes vibration at high speeds, which is essential for maintaining precise carrier movement and consistent braid tightness.
User-Friendly HMI (Human-Machine Interface): A color touchscreen for setting parameters, monitoring production status, and diagnosing faults simplifies operation and reduces training time.

Frequently Asked Questions (FAQ) About Braiding Machines for Packing

Q: What is the main advantage of a machine with more carriers?

A: A higher carrier count allows for a denser, tighter braid. Density directly correlates with the packing's ability to withstand higher pressures and temperatures, reduce extrusion, and improve sealing longevity. For demanding applications like boiler feed pumps or chemical processing valves, a 64 or 72-carrier machine from Kaxite Seals produces the superior density required.

Q: Can one machine produce different styles of packing, like round and square?

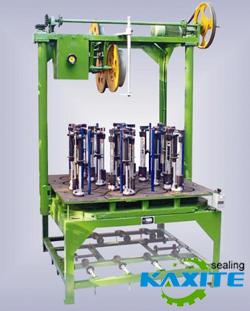

A: Yes, most modern machines are highly versatile. The key factors are the machine's programmability and its horngear/carrier track setup. Our KX-BM series machines, through their PLC, can switch between standard braid patterns. However, producing a true square braid often requires a specific carrier count (like 24, 36, 48) that is a multiple of 4 or 8 and may involve a different maypole dancing path configuration, which can be pre-set.

Q: How important is tension control, and how is it managed?

A> It is arguably the most critical feature for quality. Inconsistent tension leads to loose or tight sections in the braid, creating potential leak paths. We manage it using electromagnetic or servo-controlled tensioners on each bobbin carrier. The system provides constant, adjustable tension feedback, ensuring every yarn in the braid contributes evenly to the packing's structural integrity.

Q: What type of maintenance do these machines require?

A: Regular preventive maintenance is essential for longevity and consistent output. Daily tasks include cleaning of fiber dust and checking for worn guides. Weekly and monthly schedules involve lubricating moving parts (like horngears and carriers), inspecting and replacing tension springs or brakes, and verifying the alignment of all tracks. Kaxite Seals provides comprehensive maintenance manuals and schedules with each machine.

Q: We work with exotic materials like carbon fiber and PBO (Zylon). Are standard machines suitable?

A: Special considerations are needed. These high-modulus fibers can be abrasive and require ceramic or specially coated guides to prevent wear. Their tension profiles also differ from traditional aramid or glass. Kaxite Seals offers machine configurations specifically tailored for advanced materials, including hardened components and specialized tensioning systems to handle these demanding fibers without damage.

Q: How does the machine impact the final performance of the braided packing?

A: The machine is the foundation of performance. It determines the packing's:

Density & Consistency: A precise, dense braid offers better gland fill, reducing the risk of leakage.
Structural Integrity: Even tension and proper pattern lock prevent unraveling under dynamic conditions.
Flexibility: The braid construction affects how well the packing conforms to the shaft or stem surface.
Impregnation Uniformity: A consistent braid allows for even distribution of lubricants, ensuring smooth break-in and optimal thermal/chemical properties.

A high-quality machine from a trusted provider like Kaxite Seals is an investment in the reliability of your final sealing product.

Selecting the Right Machine for Your Production Needs

Choosing the optimal braiding machine requires a clear analysis of your production portfolio. Consider the following matrix to guide your decision when evaluating Kaxite Seals equipment:

Machine Selection Guide Based on Production Goals
Your Primary Goal	Critical Machine Feature	Recommended KX-BM Series	Reasoning
High-Volume output of standard packing sizes	Take-Up Speed, Reliability, Ease of Operation	KX-BM HS (High-Speed)	Maximizes throughput with robust, fast-cycling design for common materials like PTFE or graphite yarn.
Manufacturing packing for high-pressure/temperature services	Braid Density (Carrier Count), Tension Control	KX-BM HD (High-Density)	The high carrier count (48-72) creates the dense, compact structure needed to resist extrusion and thermal degradation.
Producing a wide variety of custom & specialty packings	Versatility, Programmable Patterns, Large Diameter Range	KX-BM Multi-Axial or High-Density	Offers the flexibility in pattern, size, and material handling to accommodate custom orders and complex specifications from clients.
Integrating braiding and finishing (lubrication)	Optional Integrated Impregnation System	KX-BM HD or Standard with add-on module	Streamlines production by combining two steps, ensuring even lubricant distribution and reducing handling for a finished product.
