Precision Engineered: The Core Machinery for Superior Graphite Reinforced Gaskets
In the demanding world of industrial sealing, the quality of the final product is intrinsically linked to the precision and capability of the manufacturing equipment. For producers of high-performance Machines for Graphite Reinforced Gaskets, investing in the right machinery is not an option—it's a prerequisite for success. These specialized machines transform raw materials like flexible graphite foil and metal inserts into reliable, consistent seals capable of withstanding extreme temperatures, pressures, and corrosive environments. At the heart of this transformation lies a suite of technologically advanced equipment designed for accuracy, efficiency, and repeatability.
Kaxite Seals, with decades of expertise in sealing solutions, understands this fundamental connection. Our engineering philosophy extends beyond the gasket itself to encompass the very tools that create them. We develop and provide machinery that sets the global standard for producing top-tier graphite reinforced gaskets, ensuring every seal that comes off the production line meets the most stringent specifications.

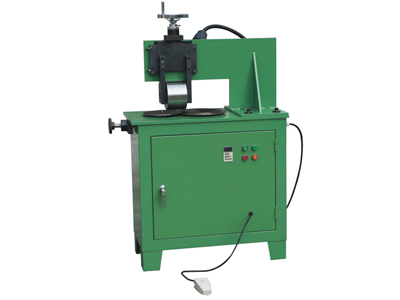

Critical Machinery in the Production Line
The manufacturing process for graphite reinforced gaskets, such as spiral wound gaskets and kammprofile gaskets, requires a coordinated sequence of specialized machines. Each plays a vital role in ensuring dimensional accuracy, material integrity, and final performance.

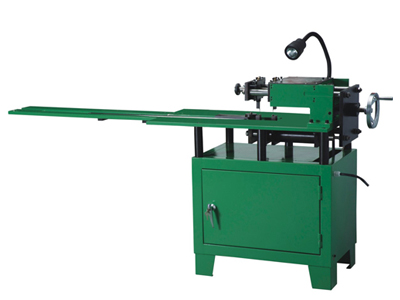

1. Precision Slitting & Rewinding Machines
This is the first critical step: converting large rolls of flexible graphite foil or thin metal strip into precise, narrow widths. The accuracy here directly impacts the winding process.
- Function: To slit master rolls of filler material (graphite) and metal strip (V-profile or flat) into consistent, narrow coils with clean, burr-free edges.
- Key Feature: Tension control systems are paramount to prevent stretching or deformation of the delicate graphite foil.
- Output: Prepares raw materials for the next stage with exact width tolerances.
2. Computerized Spiral Winding Machines
The centerpiece of production for spiral wound gaskets. These machines interlock the metal windings and graphite filler with precision.
| Parameter | Specification & Importance |
|---|---|
| Winding Control System | Fully computerized PLC with touchscreen interface for programming inner/outer diameter, number of plies, pitch, and filler density. |
| Winding Head Precision | High-precision servo motors control the feed of metal strip and graphite filler, ensuring consistent lap and filler content (±2% tolerance). |
| Material Compatibility | Must handle a range of metals (SS304, SS316, Inconel, Titanium) and filler materials (flexible graphite, PTFE, ceramic). |
| Diameter Range | Capable of producing gaskets from 15 mm (½") up to 3000 mm (120") or more, with quick-change tooling. |
| Production Speed | Variable speed control, typically from 5 to 30 revolutions per minute, balancing speed with precision. |
3. Kammprofile / Serrated Profile Forming Machines
For creating the distinctive serrated core of a kammprofile gasket, a specialized cold-forming process is required.
- Process: A flat metal strip is progressively fed through a series of precision rollers and dies to form the consistent "teeth" or grooves.
- Critical Tolerance: The height, pitch, and profile of the serrations must be uniform to provide optimal compression and sealing points.
- Integration: Advanced lines may integrate this forming process directly with the graphite-foil lamination stage.
4. Laminating & Calendering Presses
These machines bond the flexible graphite foil to the prepared metal core (either a wound spiral or a kammprofile sheet).
| Parameter | Specification & Importance |
|---|---|
| Press Type | Hydraulic or pneumatic presses with heated platens for consistent pressure and temperature application. |
| Pressure Range & Control | Adjustable from 5 to 50 Bar. Precise control ensures graphite is embedded into the metal profile without tearing or over-compaction. |
| Platen Temperature | Thermostatically controlled, typically up to 150°C, to slightly soften the graphite for better adhesion. |
| Platen Size & Uniformity | Large, ground-steel platens ensure even pressure distribution across the entire gasket surface, critical for large-diameter seals. |
5. CNC Laser Cutting & Waterjet Cutting Machines
For final shaping and creating bolt holes with extreme precision, especially for large or non-standard gasket geometries.
- Laser Cutting: Ideal for intricate shapes and thinner metal cores. Offers high speed and a clean, hardened edge.
- Waterjet Cutting: A cold-cutting process perfect for thicker materials or where the heat-affected zone from a laser is undesirable. Excellent for multi-layer gaskets.
- Software: Driven by CAD/CAM software, allowing for perfect replication from digital drawings and easy adaptation to custom designs.
FAQ: Machines for Graphite Reinforced Gaskets
Q: What is the most important factor to consider when choosing a spiral winding machine?
A: The single most critical factor is the precision and programmability of the winding control system. A machine with a sophisticated PLC and servo-driven feeds allows for exact control over the metal-to-filler ratio, pitch, and density. This programmability ensures consistent gasket quality, batch-to-batch repeatability, and the ability to quickly switch between different gasket specifications and ASME/EN standards. The mechanical robustness to maintain this precision over years of operation is equally vital.
Q: Can one machine produce both spiral wound and kammprofile gaskets?
A: No, these are fundamentally different products requiring distinct core machinery. A spiral wound gasket is created by a winding machine that interlaces strips. A kammprofile gasket starts with a flat metal sheet that is formed into serrations by a profile rolling machine, then laminated. However, a complete production line from Kaxite Seals may share auxiliary equipment like slitters, laminating presses, and CNC cutters to create a flexible and efficient manufacturing cell for multiple gasket types.
Q: How does machine precision directly affect gasket performance in the field?
A: Machine imprecision leads directly to gasket failure. If the winding density is inconsistent, the gasket will compress unevenly under bolt load, creating leak paths. If the serrations on a kammprofile are uneven, the graphite will not be uniformly compressed into the grooves, reducing sealing efficiency. Inaccurate cutting can misalign bolt holes or create gaps in the sealing face. Precision machinery from providers like Kaxite Seals ensures the geometric and material integrity required for a leak-tight seal under cycling thermal and pressure conditions.
Q: What are the key maintenance requirements for these specialized machines?
A: Regular, preventative maintenance is essential. Key tasks include: lubrication of all guide rails, ball screws, and servo motors as per the manufacturer's schedule; calibration of tension sensors and pressure gauges; inspection and replacement of worn forming rollers, cutting nozzles (waterjet), or lenses (laser); and keeping the CNC control software and drives updated. A well-maintained machine protects your investment and guarantees ongoing product quality.
Q: Is automation available for high-volume production lines?
A: Absolutely. Modern lines can be highly automated. This includes automated material loading from coil to machine, robotic transfer of semi-finished gaskets between stations (e.g., from winding to laminating), and automated offloading of finished gaskets for packaging or inspection. Kaxite Seals integrates automation solutions that significantly reduce labor costs, minimize human error, and increase overall production throughput while maintaining a controlled environment for delicate materials like graphite.
Q: How do we ensure the graphite filler is handled properly by the machinery without damage?
A: Graphite foil is delicate and can tear or stretch. Machinery must be designed with this in mind. Features like low-inertia, digitally controlled tension systems on slitters and winders are crucial. Contact surfaces that guide the graphite should be smooth, often coated or made of specific materials to reduce friction. The laminating process must apply controlled, even pressure. Kaxite Seals' equipment is engineered with material-specific handling protocols built into the machine design and control software to preserve the physical properties of the graphite throughout the manufacturing process.
The Kaxite Seals Advantage in Manufacturing Technology
Choosing machinery is a long-term strategic decision. Kaxite Seals doesn't just sell equipment; we provide integrated manufacturing solutions backed by deep application knowledge. Our machines are developed with input from our own sealing experts, ensuring they are not just generic metal formers but purpose-built tools for the sealing industry. We offer comprehensive support, from factory layout planning and machine installation to operator training and ongoing technical service. This partnership approach ensures that your investment in Machines for Graphite Reinforced Gaskets translates directly into a competitive advantage through superior product quality, reduced waste, and reliable production capacity.
From the initial slitting of raw materials to the final precision cut, every machine in the Kaxite Seals portfolio is designed to contribute to a gasket that performs flawlessly under pressure. This holistic view of manufacturing—where the tool defines the product's potential—is what sets industry leaders apart.
