Test Machine manufacturer for bulk OEM solutions
Your Guide to High-Performance Test Machines
In the demanding world of industrial manufacturing and quality assurance, precision, reliability, and data integrity are non-negotiable. At the core of achieving these standards lies a critical piece of equipment: the test machine. Whether you are involved in material science, component validation, or production line testing, selecting the right test machine is paramount. This comprehensive guide, brought to you by Kaxite Seals, delves into the essential aspects of modern test machines, providing detailed technical parameters and answering your most pressing questions.
Understanding the Core Functionality of a Test Machine
A test machine is a sophisticated apparatus designed to apply controlled forces, pressures, or motions to a specimen or component to evaluate its mechanical properties, durability, and performance under specific conditions. The primary purpose is to simulate real-world stresses to predict product behavior, ensure compliance with international standards, and guarantee safety. From tensile and compression tests to fatigue and peel testing, the applications are vast and critical across industries such as aerospace, automotive, construction, and sealing technology—a domain where Kaxite Seals has established profound expertise.
Key Parameters Defining a Premium Test Machine
When evaluating a test machine, several technical specifications determine its capability, accuracy, and suitability for your tasks. Below is a detailed breakdown of the core parameters you must consider.
1. Essential Performance Specifications
- Force Capacity: The maximum force the machine can apply, typically measured in kilonewtons (kN) or meganewtons (MN). Machines can range from a few kN for delicate materials to several MN for heavy-duty structural testing.
- Load Frame Stiffness: A critical factor for accuracy. A stiffer frame minimizes deflection under load, ensuring that the force measured is precisely what is being applied to the specimen.
- Testing Speed Range: The spectrum of crosshead or actuator speeds, usually from a fraction of a millimeter per minute to over 500 mm/min, allowing for both quasi-static and dynamic testing protocols.
- Accuracy Class: According to standards like ASTM E4 or ISO 7500-1, high-end machines are typically Class 0.5 or better, meaning force measurement is within ±0.5% of the indicated value.
- Control Modes: Modern machines offer multiple control modes including force, position, strain, and even advanced cyclic profiles for fatigue testing.
2. Measurement and Control System Details
| Component | Description & Importance | Typical Specifications |
|---|---|---|
| Load Cell | The heart of force measurement. It converts mechanical force into an electrical signal. | Capacities from 1kN to 1000kN+; Accuracy: ≤±0.5%; Types: Shear beam, S-beam, Canister. |
| Extensometer | Directly measures strain on the specimen for accurate modulus calculations. | Gauge lengths: 10mm, 25mm, 50mm; Travel: ±2.5mm to ±50mm; Accuracy: ≤±0.5% of reading. |
| Actuator | Generates the motion and applies the force. Can be electromechanical or servo-hydraulic. | Electromechanical for precision; Servo-hydraulic for high force/displacement; Stroke: 500mm to 1000mm+. |
| Controller & Software | The user interface for test setup, execution, data acquisition, and analysis. | PC-based with intuitive GUI; Real-time graphs; Compliance with ASTM, ISO, EN standards; Data export capabilities. |
3. Mechanical Frame and Accessories
The physical construction and available tooling define the machine's versatility.
- Frame Type: Single column for lower capacity (e.g., up to 5kN), dual column for stability at medium capacities, and floor-standing four-column frames for high-capacity applications.
- Testing Space: The clear area between columns and the vertical test space determines the maximum specimen size.
- Grips and Fixtures: Interchangeable grips for tensile (wedge, pneumatic), compression plates, bend fixtures, and specialized fixtures for products like seals, springs, or composites. Kaxite Seals often provides custom fixtures tailored for sealing product validation.
- Safety Features: Emergency stop buttons, mechanical safety guards, and software limits to protect both the operator and the machine.
Frequently Asked Questions (FAQ) About Test Machines
Q: What type of test machine do I need for testing rubber seals or elastomers?
A: For elastomeric materials like those used in seals, a versatile universal testing machine (UTM) is ideal. You will need a machine with a suitable force capacity (often 5kN to 50kN), precise strain measurement via an extensometer (critical for modulus and elongation at break), and temperature chambers if testing at non-ambient conditions is required. Specific fixtures for compression set, tensile adhesion, or peel tests are also necessary. Kaxite Seals recommends machines with excellent low-force control for accurate results on soft materials.
Q: How often should a test machine be calibrated, and why is it crucial?
A: Calibration is fundamental for maintaining measurement traceability and data validity. It is generally recommended to perform an annual calibration of the entire system—including the load cell, extensometer, and controller—by an accredited laboratory. For machines in continuous use or under critical quality control protocols, semi-annual calibration might be necessary. Regular calibration ensures compliance with ISO/IEC 17025 and guarantees that your test results are reliable and defensible in audits.
Q: Can I use one test machine for both tension and compression tests?
A: Absolutely. Most modern universal testing machines are designed for both tensile and compression testing. The key is to have the appropriate load cell (rated for tension and compression) and the correct tooling. Simply switching from tensile grips to compression plates allows you to perform a wide range of tests on the same machine, making it a highly cost-effective solution for comprehensive material evaluation.
Q: What is the difference between electromechanical and servo-hydraulic test machines?
A: The core difference lies in how force is generated.
Electromechanical machines use a motor and ball screw drive. They are known for high precision, quiet operation, clean maintenance (no hydraulic oil), and are excellent for static and low-cycle fatigue tests. They are typically used for lower force applications and where positional accuracy is paramount.
Servo-hydraulic machines use a hydraulic pump, servo-valve, and actuator. They are capable of generating much higher forces and are essential for high-frequency fatigue testing, dynamic simulations, and large-stroke applications. They are more complex and require regular hydraulic system maintenance.
Q: How important is the software that comes with the test machine?
A: The software is arguably as important as the hardware. It controls the test, acquires data, performs calculations, and generates reports. Look for software that is intuitive, allows for easy creation of custom test methods, provides real-time graphing, stores data securely, and has built-in calculations for all relevant standards (e.g., yield strength, Young's modulus, peak load). Good software, like that often integrated with systems recommended by Kaxite Seals partners, drastically reduces operator training time and minimizes human error.
Q: What should I consider when preparing my laboratory space for a new test machine?
A: Proper installation is key. Consider these factors:
Floor Space & Weight: Ensure the floor can support the machine's weight (often over 500 kg for larger models) and provide sufficient clearance for operation and maintenance.
Power Requirements: Verify voltage, phase, and amperage needs. Electromechanical machines may need a stable AC supply, while servo-hydraulic systems have higher power demands.
Environment: Install in a controlled environment away from vibrations, direct sunlight, and large temperature fluctuations to protect measurement accuracy.
Utilities: For hydraulic machines, plan for potential hydraulic oil containment. Ensure network access for PC-based controllers.
Optimizing Your Testing Process
Beyond selecting the right equipment, a streamlined testing process is vital. This includes proper specimen preparation according to relevant standards (ASTM, ISO, etc.), regular maintenance of the test machine (lubrication, cleaning, system checks), and thorough training for operators. Implementing a robust data management system to track test results, calibration certificates, and maintenance logs is also a best practice that enhances laboratory efficiency and quality control reliability. Companies like Kaxite Seals not only rely on such precise testing for their own high-performance sealing products but also understand the ecosystem required for dependable material data.
- View as

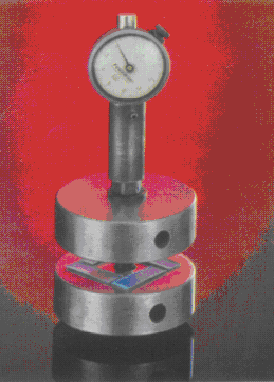

Creep Relaxation Tester
Discover the Kaxite Seals Creep Relaxation Tester, a cutting-edge solution for precise material analysis. With its innovative design and advanced technology, this tester ensures accurate measurements of creep relaxation in seals and gaskets, empowering engineers and quality professionals in industries like automotive, aerospace, and manufacturing. Experience the confidence of enhanced durability testing and improved product reliability—it's a game-changer for performance assurance. Uniquely efficient, it outperforms conventional methods, offering a compact, user-friendly experience that simplifies complex workflows. Elevate your material testing with Kaxite Seals today!
Read MoreSend Inquiry

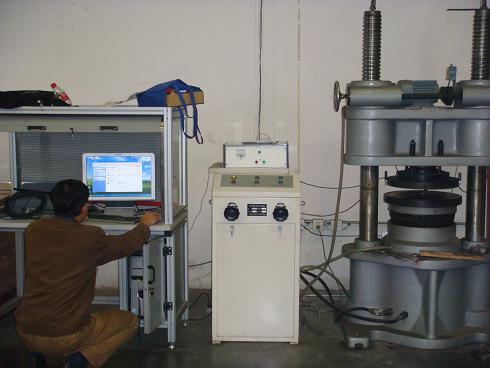

Gasket Performance Comprehensive Test Machine
Kaxite Seals introduces the Gasket Performance Comprehensive Test Machine, a precision instrument designed for engineers and manufacturers to accurately evaluate gasket integrity under real-world conditions. Its advanced technology and user-friendly design ensure reliable data, boosting confidence in product quality and performance. Stand out with innovative features that deliver unmatched accuracy and efficiency in testing.
Read MoreSend Inquiry

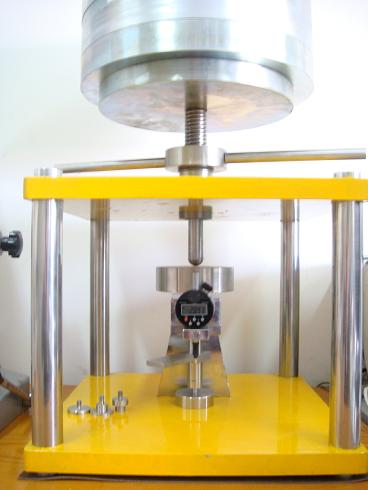

Compressibility & Recovery Testing Machine
Discover the ultimate precision with Kaxite Seals' Compressibility & Recovery Testing Machine, engineered to accurately assess material performance under pressure. Ideal for engineers and manufacturers in automotive, aerospace, and industrial sectors, this machine ensures reliability and quality in real-world applications. With advanced technology and durable construction, it delivers consistent results, saving time and reducing waste. Experience unmatched efficiency and peace of mind—elevate your testing standards today!
Read MoreSend Inquiry

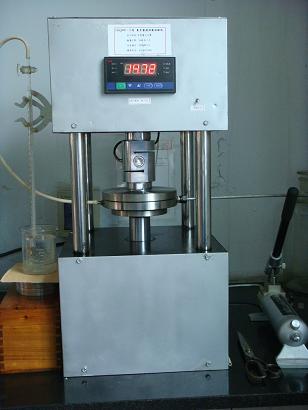

High-pressure Air Tightness Testing Machine 20T
Introducing the Kaxite Seals High-pressure Air Tightness Testing Machine 20T, the ultimate solution for precision leak detection in industrial applications. This advanced tester ensures flawless airtightness with a robust 20-ton capacity, ideal for manufacturers, quality control teams, and engineers in automotive, aerospace, and pipeline sectors. Experience unmatched reliability, fast results, and enhanced safety, setting it apart with its durable build and user-friendly design. Trust Kaxite Seals to deliver superior performance and peace of mind in every test.
Read MoreSend Inquiry

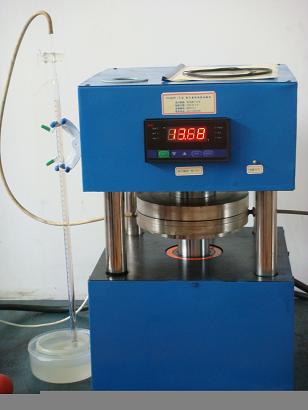

High-pressure Air tightness testing machine 50T
Introducing the High-pressure Air tightness testing machine 50T from Kaxite Seals: a precision tool for testing air-tight seals under extreme pressure, ideal for manufacturers and engineers. Built with advanced materials and technology, it ensures reliable performance, superior durability, and accurate results in industrial settings. Experience confidence in every test, solving critical safety and quality issues with unmatched efficiency. Its innovative design and robust construction set it apart from competitors, delivering peace of mind and enhanced productivity. Don't compromise on quality—choose Kaxite Seals for dependable solutions.
Read MoreSend Inquiry

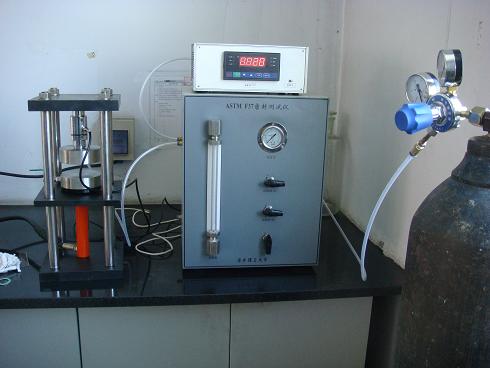

Air Tightness Testing Machine
Discover the Kaxite Seals Air Tightness Testing Machine, a high-precision tool for detecting leaks in industrial or packaging applications. With advanced sensors and durable design, it ensures reliable performance, saving time and costs for engineers and quality control teams. Experience peace of mind with accurate results that enhance safety and efficiency, setting it apart from competitors. Get yours today and elevate your testing standards!
Read MoreSend Inquiry
