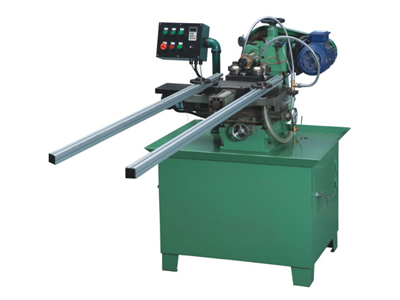

High Precision Machines for Kammprofile Gaskets Manufacturing Solutions

For over two decades, the manufacturing of Machines for Kammprofile Gaskets has been a cornerstone of industrial sealing solutions. These specialized machines are engineered to produce the highly reliable, serrated metal core gaskets that are critical in demanding applications across petrochemical, power generation, and heavy industrial sectors. At Kaxite Seals, we have dedicated ourselves to refining this technology, ensuring our machines deliver unparalleled precision, durability, and efficiency. This deep industry knowledge directly informs the design and capability of every machine we produce, setting a new standard for gasket fabrication equipment.

The core function of these machines is to transform high-quality metal strips—typically stainless steel, carbon steel, or exotic alloys—into the precise, wave-shaped (kamm) profile that gives these gaskets their name. This profile is then laminated with flexible sealing layers, such as graphite, PTFE, or ceramic. The quality of the final gasket is irrevocably tied to the precision of the forming machine. Even minor deviations in the profile's depth, pitch, or angle can compromise the seal's performance under extreme pressure and temperature. Therefore, investing in a machine from a proven manufacturer like Kaxite Seals is not merely a purchase; it's a long-term commitment to operational safety and reliability.

Critical Technical Parameters of Kammprofile Gasket Machines

Understanding the specifications is vital for selecting the right equipment for your production needs. Below is a detailed breakdown of the key parameters that define a high-performance machine.

Primary Machine Specifications

• Machine Type: Fully Automatic / Semi-Automatic Roll Forming Systems.
• Forming Principle: Precision cold roll forming through a series of contoured hardened steel dies.
• Drive System: Servo-motor driven with closed-loop feedback for exceptional speed and position accuracy.
• Control System: PLC-based with intuitive HMI (Human-Machine Interface) touchscreen panel. Capable of storing hundreds of tooling profiles for different gasket specifications.
• Frame Construction: Heavy-duty welded steel with stress-relieving treatment to ensure stability and minimize vibration during high-speed operation.
• Tooling Material: Premium tool steel (e.g., D2, M2) or tungsten carbide, hardened and precision ground to sub-millimeter tolerances.

Detailed Performance & Capacity Table

Advanced Features of Modern Kammprofile Machines

Today's leading machines incorporate features that go beyond basic forming to offer comprehensive production solutions.

• In-line Lamination Systems: Optional modules that apply graphite or PTFE foil to the formed metal core in a single, continuous process, significantly boosting productivity.
• Laser Guidance or Vision Systems: For semi-automatic models, these systems project the cutting path or inspect the profile in real-time, reducing operator error and material waste.
• Automatic Lubrication: Centralized systems that lubricate critical bearings and guide ways at programmed intervals, reducing wear and maintenance needs.
• Remote Monitoring & Diagnostics: IoT-enabled machines allow for performance tracking and preliminary fault diagnosis via secure web portals, a service standard with Kaxite Seals' premium lines.
• Quick-Change Tooling Systems: Patented cartridge systems that allow an operator to change the entire forming roll set for a different profile in under 30 minutes, maximizing machine flexibility.

Machines for Kammprofile Gaskets: Frequently Asked Questions (FAQ)

Q: What is the main advantage of using a dedicated machine for Kammprofile gaskets instead of general-purpose metal forming equipment?

A: Dedicated machines are specifically engineered for the unique demands of creating the precise, repetitive kamm profile. They offer superior control over critical parameters like depth, pitch, and angle consistency across long production runs. General-purpose equipment cannot achieve the same level of accuracy or repeatability, leading to gaskets with potential weak points that could fail under cyclic loading or high temperature. The tooling, guides, and control logic in a dedicated machine from Kaxite Seals are all optimized for this single task, ensuring product integrity and reducing scrap rates.

Q: How often does the tooling (forming rolls) need to be maintained or replaced, and what factors affect this?

A: Tooling lifespan depends heavily on the material being formed and maintenance practices. For forming standard 304/316 stainless steel, high-quality tool steel rolls from Kaxite Seals can typically produce 50,000 to 100,000 meters before requiring re-grinding. Forming harder alloys like Inconel or thicker materials will accelerate wear. Key factors include: the hardness and quality of the tooling steel, proper lubrication of the strip, cleanliness of the material (avoiding abrasive scale), and ensuring the machine is correctly aligned to prevent uneven loading. Regular inspection of the first and last formed profiles is recommended.

Q: Can one machine produce different styles of Kammprofile, such as different profile angles or a "wavy" vs. "flat-topped" design?

A: Yes, but with important considerations. Most standard machines are built to produce one specific profile geometry (e.g., a 90-degree included angle with a rounded peak). To switch to a fundamentally different profile—like changing from a rounded to a flat-top (trapezoidal) design or altering the flank angle—requires changing the entire set of forming rolls and potentially other guide components. This is where machines with quick-change tooling systems excel. For frequent changeovers, it is crucial to discuss your need for flexibility with your supplier. Kaxite Seals engineers can configure machines for easier changeovers based on your expected production mix.

Q: What are the key safety features to look for in these machines?

A: Industrial roll-forming machines must incorporate robust safety measures. Essential features include: a fully guarded forming zone with interlocked access doors that immediately halt the machine when opened; emergency stop buttons at multiple operator stations; nip-point guards on all in-running rolls; overload protection on the main drive and uncoiler to prevent mechanical failure; and proper electrical grounding and fault protection. Furthermore, comprehensive training for operators on lock-out/tag-out (LOTO) procedures is non-negotiable. Kaxite Seals provides full safety documentation and operational training with every machine installation.

Q: What technical support and training does Kaxite Seals provide with the purchase of a machine?

A: Kaxite Seals believes support is integral to the product. Our package includes detailed installation supervision by our engineers, comprehensive on-site training for both operators and maintenance technicians, and a complete set of manuals (mechanical, electrical, PLC). We provide a generous inventory of commonly worn spare parts. Post-installation, customers have access to our technical support team via phone and email, and for complex issues, we offer remote diagnostics and, if needed, expedited on-site service visits. Our goal is to ensure your production line achieves optimal uptime and productivity from day one.

Integration into a Complete Production Line

A standalone forming machine is just one part of the workflow. For a seamless operation, it must be integrated with upstream and downstream equipment. A typical line supplied or recommended by Kaxite Seals includes:

1. Material Handling: Motorized uncoiler with tension control and a straightening unit to feed flat, consistent strip into the former.
2. Core Forming: The main Machines for Kammprofile Gaskets unit.
3. In-line Lamination (Optional): A station that applies adhesive and precisely winds the sealing foil onto the metal core.
4. Cutting & Slitting: A servo-driven flying knife cutter to produce individual gasket rings of precise lengths, or a slitter to create narrower strips from wider formed core.
5. Finishing: Equipment for applying anti-stick coatings or performing final quality inspection.

Choosing a supplier like Kaxite Seals, with expertise in the entire gasket manufacturing process, ensures all components work in harmony, maximizing your return on investment.
