Molded PTFE Tube
Discover Kaxite Seals' Molded PTFE Tube: a durable, non-stick solution for demanding industries like chemical processing and food production. Its high-purity PTFE material resists corrosion and extreme temperatures, ensuring reliable performance. Perfect for engineers seeking longevity and efficiency, it simplifies operations and reduces maintenance. Unlike standard tubes, our molded design offers enhanced flexibility and leak-proof sealing. Trust Kaxite Seals for superior quality that boosts productivity and peace of mind—get yours today to elevate your systems!
Send Inquiry
Product Description

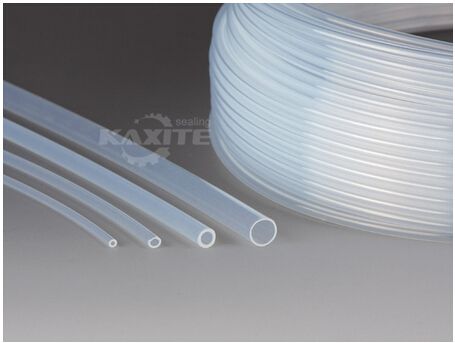

PTFE Tubes
We are the leading supplier of the ptfe tubes. The all manufacturing process is design in such a way that minimizes the cost of the production. Our ptfe tubing is appreciated and favored by the customers for their performance.
It consists of all characteristics of ptfe, which is an ideal raw material among all plastics. It has internally smooth structure, which made it so strong and flexible. It consists anti friction, anti-brokage and anti-blockage characteristic. It's highly resistant to the corrosive chemicals. It also consists of good dielectric strength and good tensile strength.
Advantages
• Smooth inner surface
• Abrasion resistance
• High temperature resistant
• High dielectric strength
• High strength against pressure
• anti-friction
• anti-corrosive
• Flexible.
• Non-contaminating
|
PTFE Tubing & SLEEVES |
||
|
Standard Size: 3mm to 28mm wall thickness: 0.75mm to 2mm Grade: VIRGIN Tem. Range: -200 Deg.C to + 250 Deg.C., good dielectric insulation properties. Tensile Strength: between 2,500-4,000 Density: 2.13-2.24 |
|
Data Sheet
| Property | ASTM test | Value | |
|---|---|---|---|
|
Physical properties |
Specific gravity | D792 | 2.15 |
| Water absorption ( % ) | D570 / 24 hrs 1/3" t | < 0.00 | |
| Mold shrinkage ( cm / cm ) | 0.02 - 0.05 | ||
| Contact angle ( degree ) | Angle to level | 110 | |
|
Thermal properties |
Thermal conductivity (cal/sec/cm2, o /cm ) |
C177 | 6 x 10 - 4 |
| Coefficient of liner thermal expansion(1/oC) | D696 / 23 - 60oC | 10 x 10 - 5 | |
| Melting point (oC ) | 327 | ||
| Melt viscosity ( poise ) | 1011 - 1013 | ||
| (340 -380oC) | |||
| Maximum temperature for continuous use (oC / oF ) | 260 / 500 | ||
|
Mechanical properties |
Tensile strength ( kgf / cm2 ) | D638 / 23oC | 140 - 350 |
| Elongation ( % ) | D638 / 23oC | 200 - 400 | |
| Compression strength ( kgf / cm2) | D695 / 1 % deformation, 25oC | 50 - 60 | |
| Tensile modulus ( kgf / cm2 ) | D638 / 23oC | 4,000 | |
| Flexural modulus ( kgf / cm2 ) | D790 / 23oC | 5,000 - 6,000 | |
| Impact strength ( ft - lb / in ) | D256 / 23oC, Izod | 3 | |
| Hardness (Shore) | Durometer | D50 - D65 | |
| Deformation under load ( % ) | D621 / 100oC, 70 kgf / cm2, 24 hrs | 5 | |
| D621 / 25oC, 140 kgf / cm2, 24 hrs | 7 | ||
| Static friction coefficient | Coated - steel surface | 0.02 | |
|
Electrical properties |
Dielectric constant | D150 / 103Hz | 2.1 |
| D150 / 106 Hz | 2.1 | ||
| Dielectric dissipation factor | D150 / 103 Hz | < 1 x 10 - 5 | |
| Dielectric break down strength ( V / mil ) | D149 / Short time,1/ 8 in | 480 | |
| Volume resistivity( ohm - cm ) | D257 | > 1018 | |
| Chemical resistance | Excellent | ||
| Weather ability | Excellent | ||
| Combustibility ( % ) | D2863 / Oxygen concentration index | > 95 | |
